NFB-11
Sabre32 ES9018 DAC chip
Dedicated DAC +   HP/Pre amp

Dedicated DAC  variable and fixed line level
32Bit /192KHz Coaxial/Optical input support
*
Applies ACSS

Not: Since 21th Feb.2011, upgrade to TCXO.

Price: USD280(Exclude shipping cost)
Weight: Approximately 2.5kg
Dimension:  W159 X L225 X H42(MM)
Accessories: Stock power cable X1, optical cable X1

* The ES9018 had higher request of sources than other DAC , it request source have least 0.7Vp-p SPDIF output (Standard is 1Vp-p ,max is 5Vp-p) and the decent SPDIF waves ,otherwise it can't guarantee  work well with 192K (coaxial input and optical input) or 96KHz (optical input) , if the SPDIF signal too bad maybe cause the click sound .   We practised  it can work well with our DI and hiface at 192KHz , and most users had not problems .

Summarize: Fully discrete amp without any OPA , couple caps ,non- feedback analog output stage and strong power supplys .
        The NFB-11 uses 20W high performance transformers . More than 10,000uf audio grade NOVER capacitors are used to ensure ample and smooth power feed. The NOVER capacitors are specially custom order from NOVER (U.K.) according to Audio GD¡¦s requirement. Total of 6 PSU groups are used to purify the power supply. To achieve Silent operation, the control circuit is powered with separate regulator.
        The NFB-11 uses high grade SMD resistors (1% tolerance). RCA sockets are custom ordered and 24k gold-plated. All transistors are exact-matched Toshiba and Hitachi.
        The  NFB-11 applies a custom order ALPS 27 volume pot for reducing channel imbalance and improving on sound quality, the quality is higher and much more costly than the standard ALPS 27 more common in the market.


Sound Characteristics:  The NFB-11 has quite high fidelity, its sound signature is absolutely revealing, neutral and faithful and very detailed. It can show how good or how bad a recording is. If you are afraid of flaws being revealed in the music files, other gears like those applying WM8741 will be better. Our gears that apply WM8741 are designed to sound neutral and revealing but with a little smoothness .

http://www.head-fi.org/t/516886/audio-gd-nfb-11/930#post_7990282
¡@

What's different between Sabre chips
¡@
Device Description Package DNR(DB) THD(DB)
ES9018 Sabre 32 Reference 32bit 8-channel audio DAC 64 LQFP 135(Mono)
129(8 channel)
-120
ES9016 Sabre 32 Reference 32bit 8-channel audio DAC 48 LQFP 128(Mono)
124(8 channel)
-110
ES9012 Sabre 32 Reference 32bit Stereo audio DAC 64 LQFP 133(Mono) -120
ES9008 Sabre Reference 8-channel audio DAC 64 LQFP 132(Mono)
128(8 channel)
-118
ES9006 Sabre Premier 8-channel audio DAC 48 LQFP 120 -102

NFB-11( BNC version)






Note: The BNC input is control by the front plate which still marking is "USB" , we have not modify this mark. The part of USB input in the photos already changed to the part of coaxial input but the photo still not upgrade.
¡@
    What different between NFB11 and NFB12 :

     The NFB-11 has quite high fidelity, its sound signature is absolutely revealing, neutral and faithful and very detailed. It can show how good or how bad a recording is. If you are afraid of flaws being revealed in the music files, other gears like those applying WM8741 will be better. Our gears that apply WM8741 are designed to sound neutral and revealing but with a little smoothness .


     The NFB-11 best match with the headphone which had neutral or warmer side sound characteristic .

     The NFB-12 is a twin brothers of NFB-11 , Neutral but smoothness sounding ,it doesn't sound skeletal or digital (or metallic). There's meat aplenty on them bones . It's a sigma-delta DAC chip implementation without the dryness, neutrality without the emotional disconnection.



About NFB?


NFB means Non-Feedback.
        The NFB-11 applies the newest ESS high-end Sabre32 DA chip ES9018 which can support up to 32Bit/96KHz input . Similar to other ES9018 designs, Our NFB-11 applies Non-feedback ACSS output stage. The ES9018 feed to the ACSS output stage without any OPAs so it can achieve very neutral sound quality.
        The ACSS is a non-feedback technology made with fully discrete amplifiers. Most people know the global feedback design can offer better specs in test measurements, and non-feedback can't do well in test measurements but can offer better sound for the human's ears. Here is a conflict of the classic circuits. But the ACSS opens a new field, it can offer a least coloration sound which is more neutral with very low distortion and high linearity. So it can retain the dynamics, detail and neutral sound but not sound bright or harsh.
        The output buffers are Non-feedback. For low impedance, we applied a diamond output stage which is quite less colored than most conventional circuits.
        The DAC is without couple caps to avoid coloration.

           Fully
Discrete ACSS headphone amp.

Click image to enlarge.

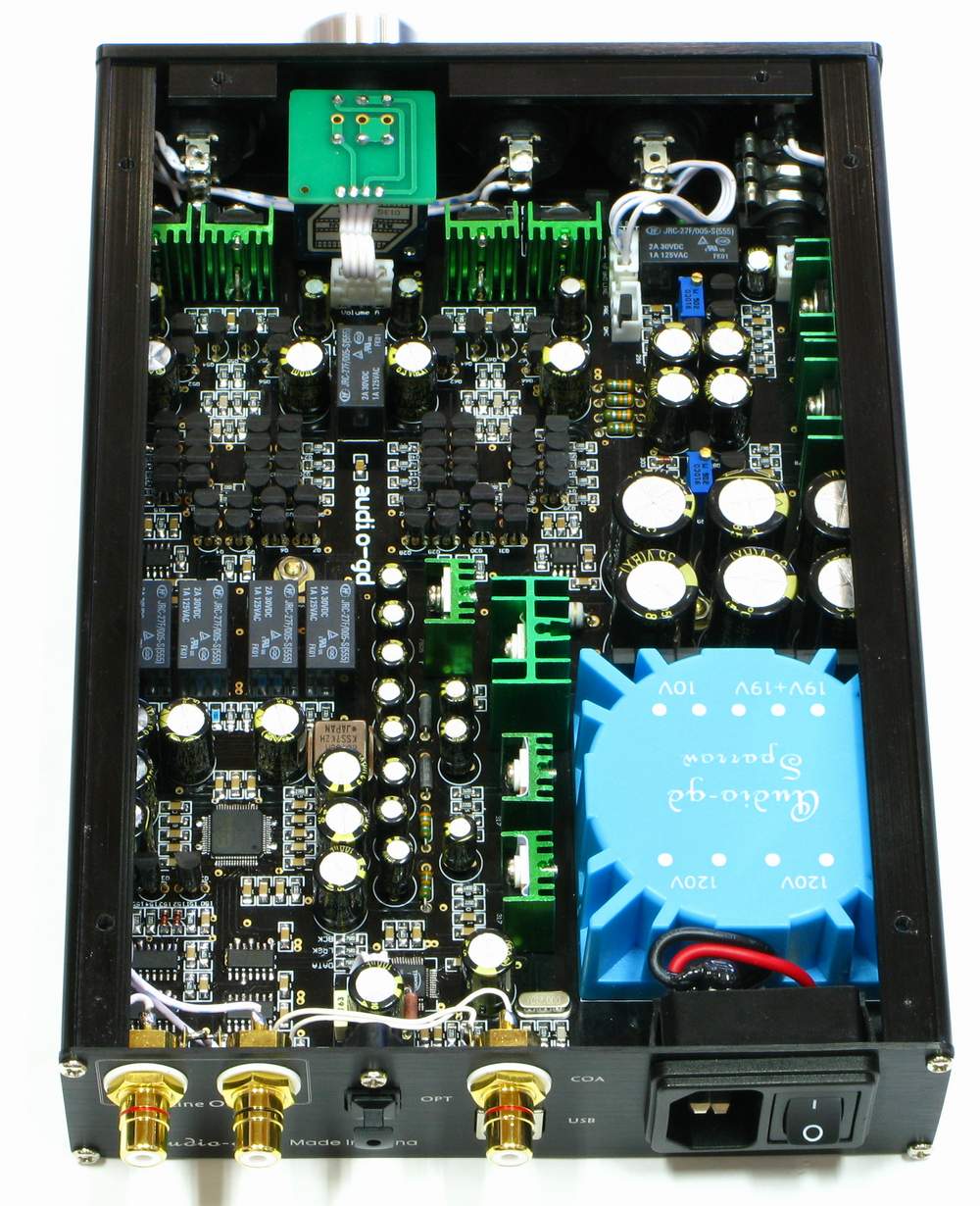

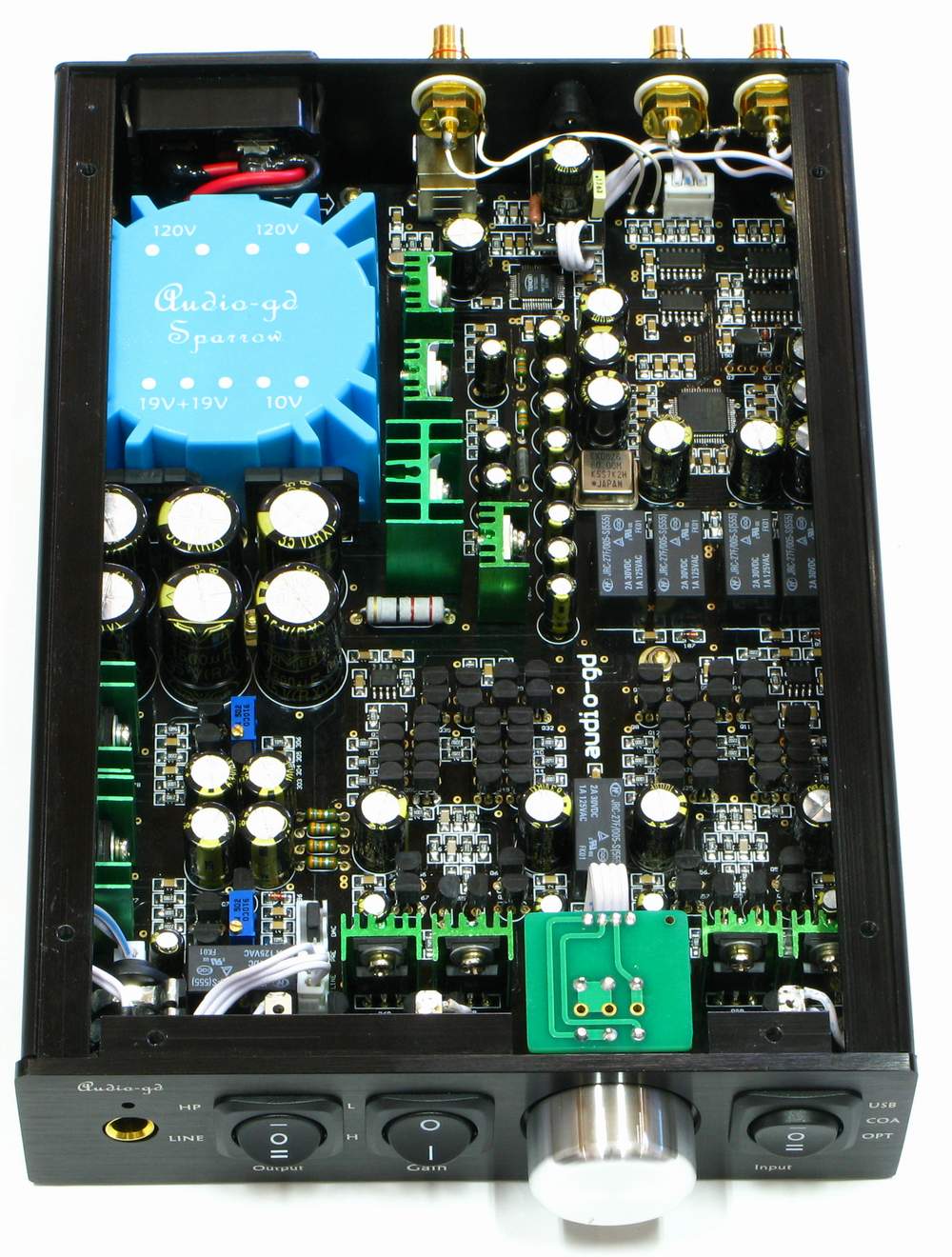

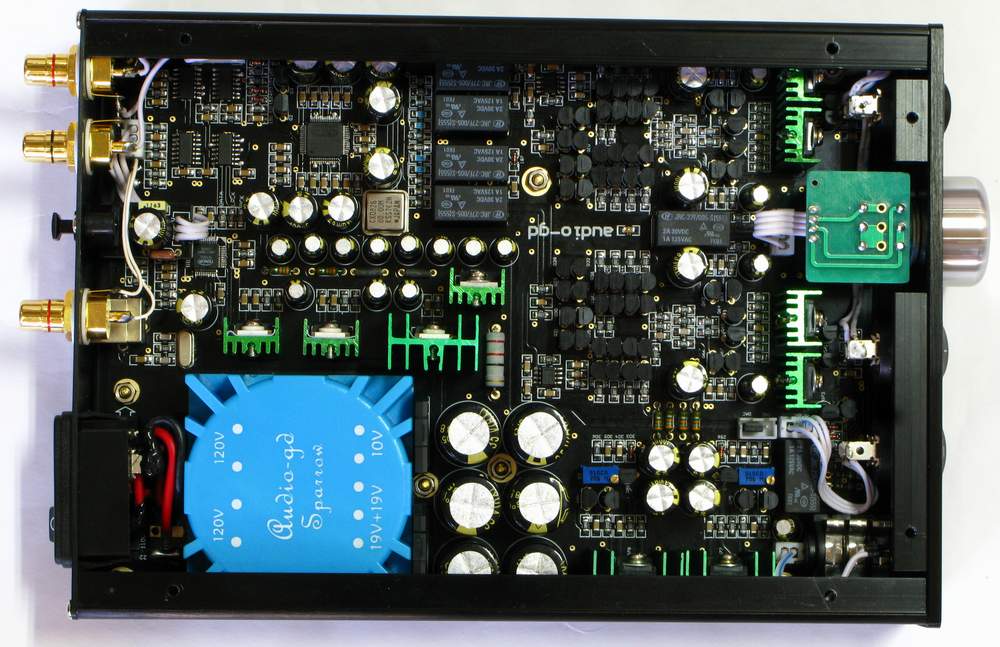

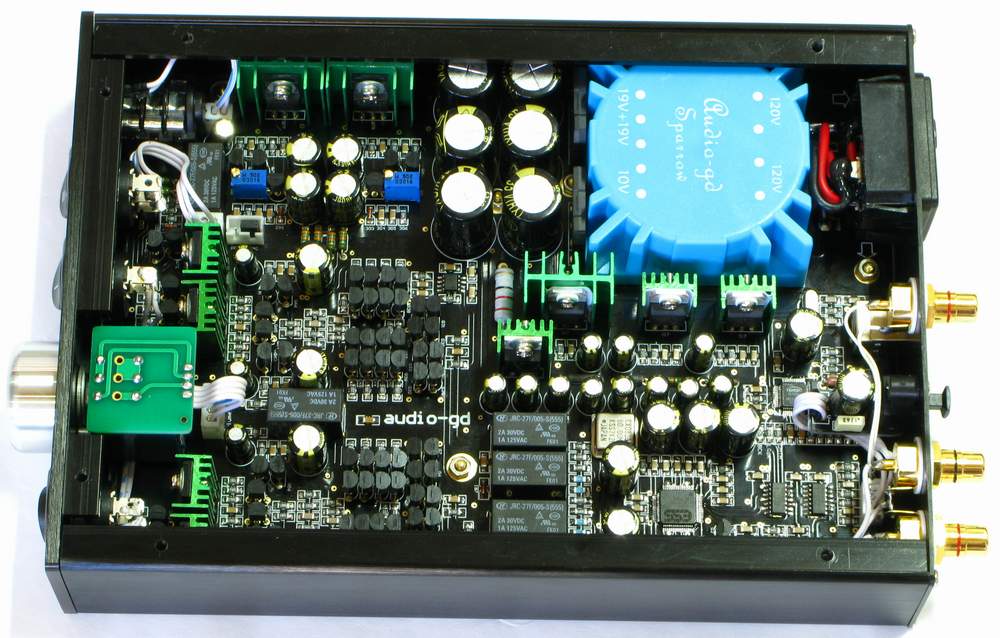

        NFB-11 applies the excellent DA chip ES9018 and excellent analog output stages, but these are not the only keys of the best sound. The power supply is most important. Even applying the best DA chip and the best amp, if matched to a normal power supply, the total sound may still be average or sound musical but can't be neutral and detailed. That is why it is easy to find hi-end grade gears maybe without the best chips or amp stages, but with plenteous dedicated DC supply circuits.

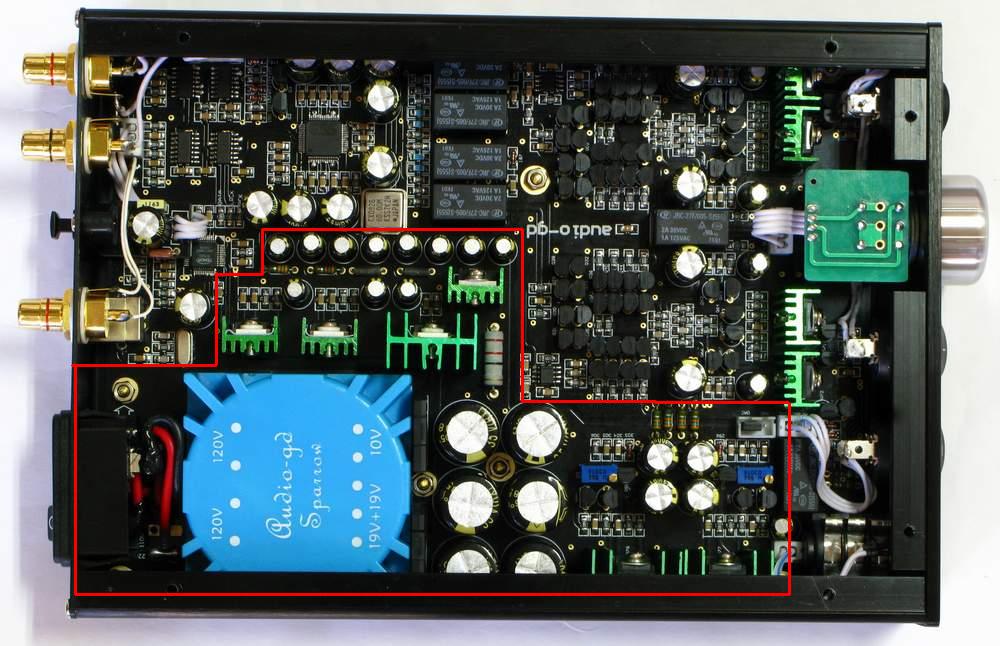

         The NFB-11 uses 6 groups of high-quality  PSU with dedicated DC supply. Digital and analog voltages each have separately isolated internal power regulations.
        The analog power supply is more important for sound reproduce, in NFB-11, the +15V and -15V for the ACSS analog output stages are high speed Discrete PSU. They can offer pure and quick power supply for driving the headphone exactly. The high voltage power supply can drive most headphone from 15 to 600 ohms as well.

               Strong power supply.
 Click image to enlarge.

¡@

     About volume in ACSS circuits:

       For a headphone amp, the volume control is very important.

    NFB-11 use ACSS technology, which is very different from conventional technology.
   In conventional technology the gain is fixed, like 3DB or 6DB.

       But in ACSS technology the gain changes with volume, and when you turn off the volume, the gain is -80DB or -100DB (in conventional technology it can't work lower than 0DB).
       While you are listening in normal volume, the gain may be around -50DB, or between -80 to +12DB.
       The volume control is also different from conventional technology. Conventional technology volume control is placed in the input, and attenuates the signal.
       But in ACSS, it is placed at the ACSS modules output, where the output is the current signal, not the voltage signal. The volume control is I/V conversion, and the volume depends on the current (I) conversion to the voltage (V). (Like D/A chips output I/V conversion)
       As you can see, ACSS circuits have no gain, as it is a completely different circuit.
       The sound quality benefits from I/V conversion volume control. Mark Levinson also knows that current volume control has great benefits, so in their Top End preamp NO.32 volume control, they use many components to change the signal to current signal (I), then through the R-2R network to control the volume, and then change back to voltage signal (V) again. But NFB-11 is simply a more complete work in terms of the current signal, and technically, it is superior to conventional technology.


                         ALPS 27 volume pot             Vishay
SMD resistors (1 % tolerance)

Click image to enlarge.



 The NFB-11 Functions:

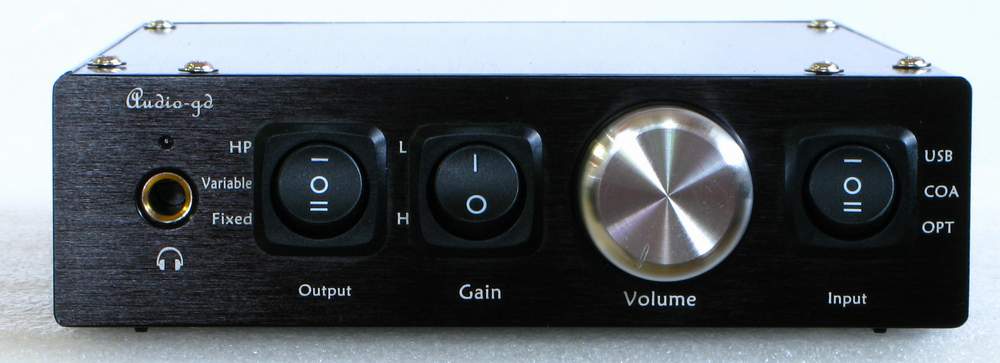

     Front plate:

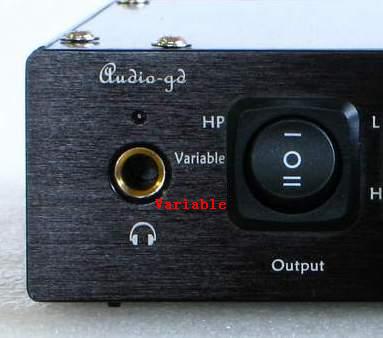

 Output switch: Select output between headphone, Fixed DAC output and Variable DAC output.

Gain switch: Select gain between low gain (+0DB) and high gain (+12DB).

Volume knob: Control the volume level of the headphone and variable DAC output.

Selector switch: Select source between BNC, coaxial and optical.

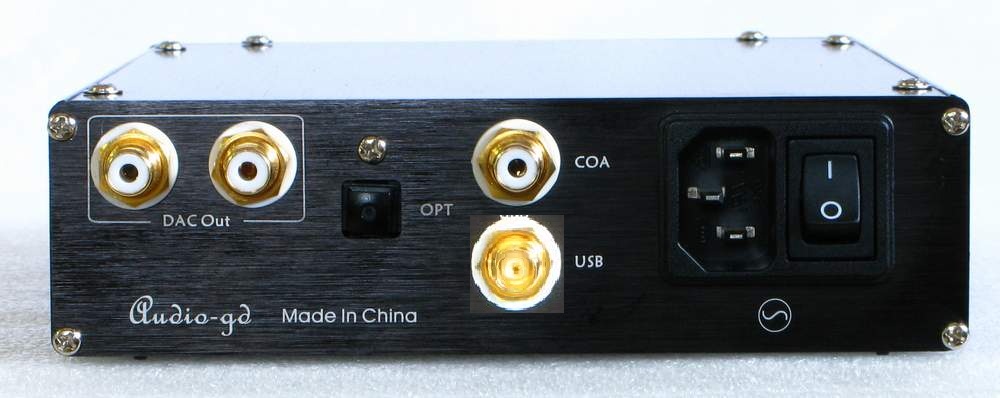

     Rear:
     Power socket: For power input and power ON/OFF switch.
     BNC socket: For BNC input.
     Opt socket: For optical input.
     Coax socket: For coaxial input.
     DAC out sockets: For dedicated DAC output.
(The DAC output level can be chosen between variable and fixed , see below).

 How to set the NFB-11 DAC output as variable line level only?

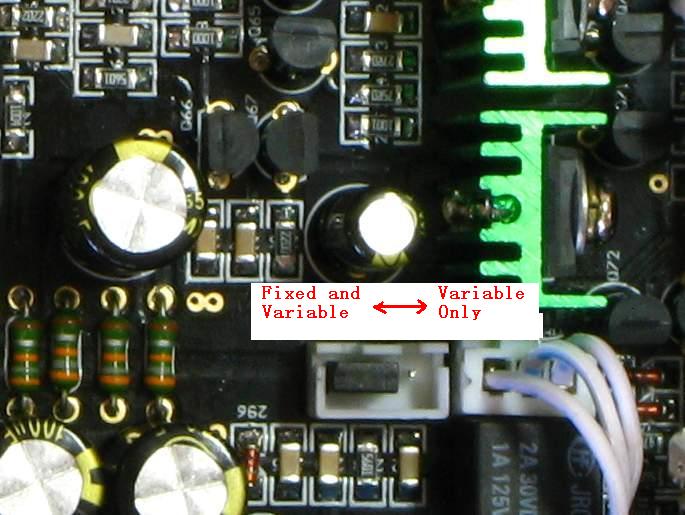

The NFB-11 has one group Line out for dedicated DAC output, in default its output level can select between variable and fixed. But owners can set it to output variable line level only (if yours amp or active speakers without volume control, we advice setting to variable output only).  See the photos, change the jumper to "variable" side for setting the DAC output to variable only.



Setting the Fixed and variable output  The new functions after setting      DAC output sockets
   to variable only



¡@

¡@


Improvement may result in changes in specifications and
design without notice.
S/N Ratio
118db
¡@
 Output Level
 Headphone output : 10V RMS
Variable output : 10V RMS
Fixed output: 2.25V RMS
¡@
Output power
Only for headphone.

3500mW/25 ohm
1800mW/50 ohm
900mW/100 ohm
300mW/300 ohm
150mW/600 ohm

¡@
Output impedance 2 ohm /  Headphone output
2 ohm / DAC output
Input Sensitivity
0.5 Vp-p(75 Ohms, Coaxial)
19 dBm (Optical)
¡@
Frequency Breadth
3Hz - 350KHz ( +0DB, -3DB )
20Hz - 20KHz ( +0DB, -0.2DB )
¡@
Power Requirement
1 Version  100-120V  AC 50/60 Hz
2 Version  220-240V  AC 50/60 Hz
¡@
Power Consumption
10W
¡@
Package Weight
2KG
¡@
Accessories
AC power cord            X1
USB cable                X1
Optical cable            X1
¡@
Operating Temperatures
+5 ¢XC to +40 ¢XC
¡@
Operating Humidity
5 % to 90 % (without dew)
¡@


¡@
