TE8802
USB2.0 Audio Class V2.0 and V1.0
USB Audio Class2 High-speed Input from PC/MAC (Windows XP, Win7 32bit /64bit,
MAC OS, Can't not support Linux now , but Tenor company promise will support
Linux in near future. )
Supports full/high speed Asynchronous Transfer Mode
Resolutions support 16 / 24-Bit with sampling rate support 44.1kHz, 48kHz,
88.2kHz, 96kHz, 176.4kHz, 192kHz
|
Design:
Since
November 2011 we have finished the TE8802 design and start 10 pcs
TE8802 samples test. At 15th December 2011 , we had order the first
batch TE8802 .
The Tenor company Chinese general agent
declare they have limit release the TE8802 carefully, only accredit
to few manufacturers can produce TE8802 products, and promisesed we
are the first manufacturer produce batch products applied TE8802 in
Chinese Mainland .
While we start design the PCB, we
were consider the TE8802 running at 192KHz high sampling, it need
good power couple to keep it working well and stabilization ,
so we design every power supply pins has applied 1UF with 0.1UF in
parallel connection , and there are 4 pcs 100UF caps place on
different parts of TE8802 power supplies.
For the caps can shortest connect to
the TE8802 power supply pins, we design the caps on bottom side, the
wires between the TE8802 pins and the caps less than 4MM length,
guarantee the TE8802 working well and stabilization , reproduce the
detail .
Driver:
The TE8802
supports high speed Asynchronous Transfer Mode , so it need install
the driver in the computer .
1, Download the driver and unzip .

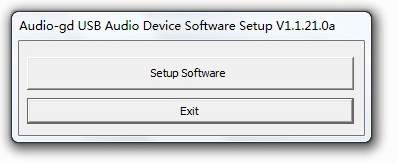

2, Click the shortcut menu "UsbHDAudioSetup" . The
driver will automatic detective the current OS and perform the
proper driver install.
3, Install start .
4, Waiting few minute till the driver

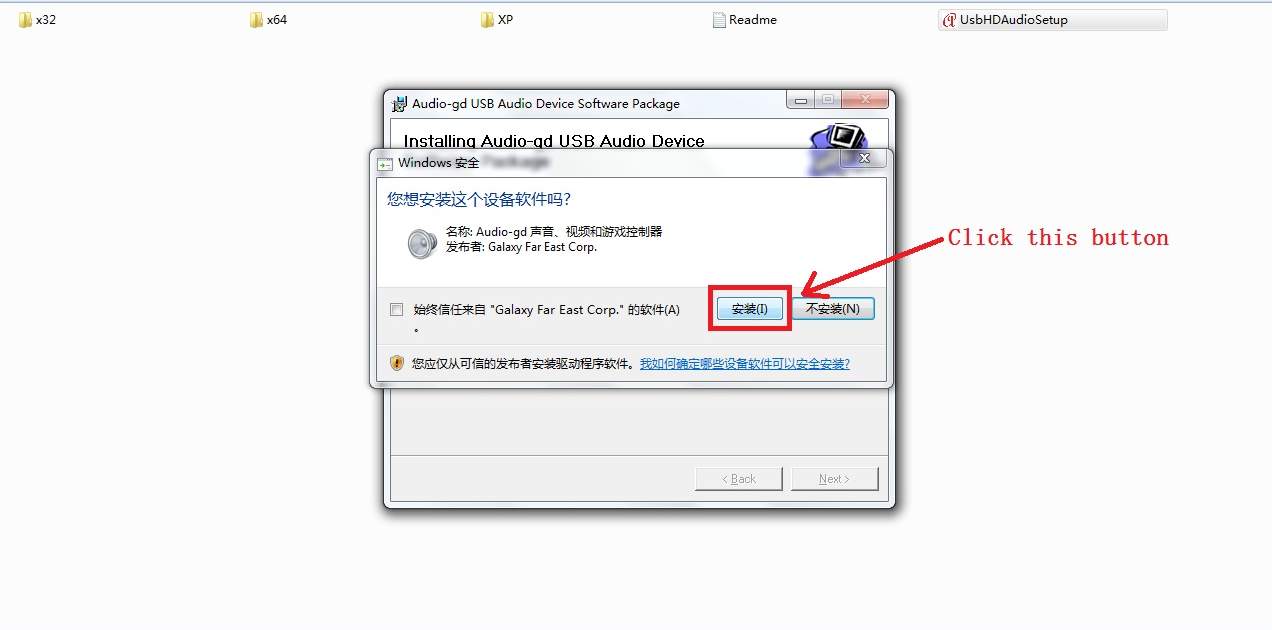

install complete . During install, there is a window ask you if
want to continue the install, click the button (Yes) as below
picture.
5, Restart the computer. On the start menu have a program
document name " Audio-gd" , click in and click our logo
for start the audio control panel.
6, Users can setting the output
sampling rate and other options on the audio control panel.
Please note:
1, On Windows XP, software package must be installed before USB
audio device is plugged in.
2, If the driver can't automatic
detective the current OS , please click the document to choice the
proper driver for install . The document name:
x32 for 32 bit Win7,
x64 for 64bit Win7 ,
XP for Windows XP .
Audio-gdUSBASY
for MAC OS.
3, If want to restart the TE8802 device, after power off , least 10 seconds for the TE8802 reset
is necessary .
|
