HE-1
(Limit Edition)
Regenerative power supply
Real Balanced ACSS Pure Class A Preamp




Summarize Use Manual Specs Shipping Cost

Improvement may result in changes in specifications and
design without notice.

S/N Ratio

>130DB

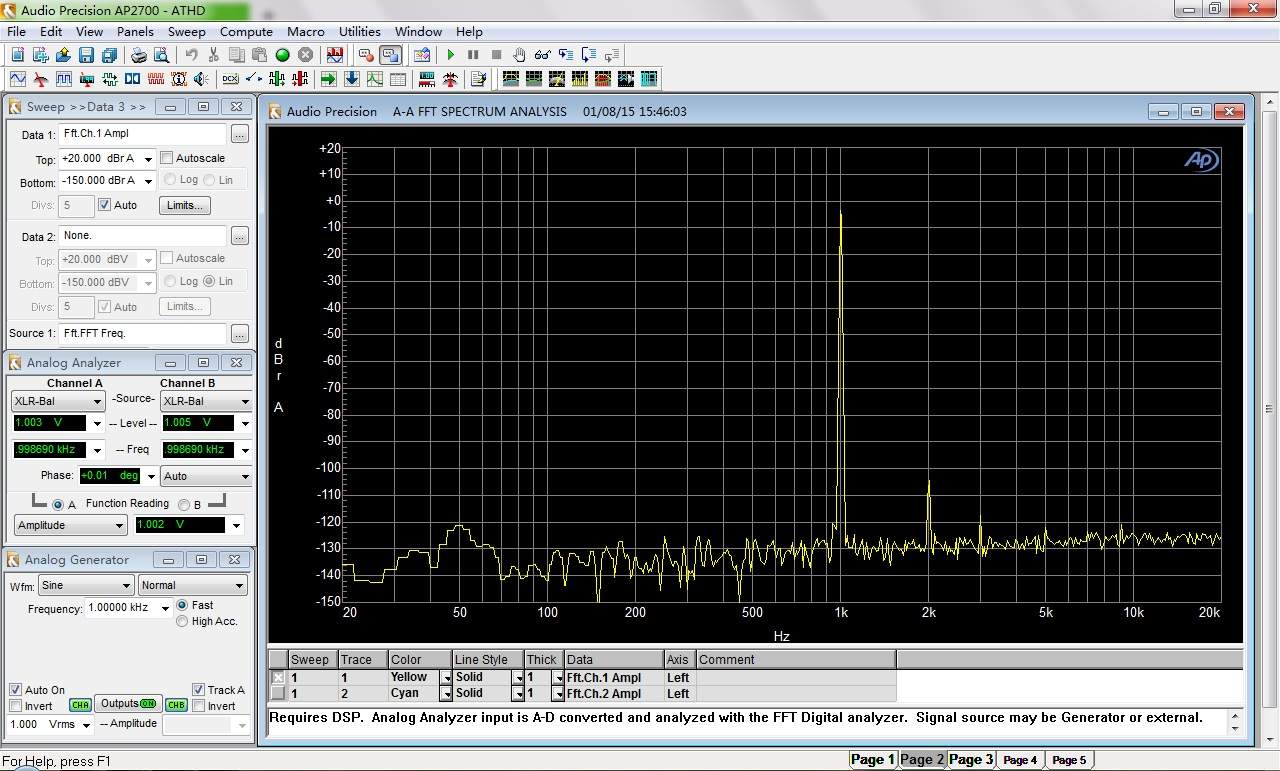

THD
¡@		 <0.0005 %

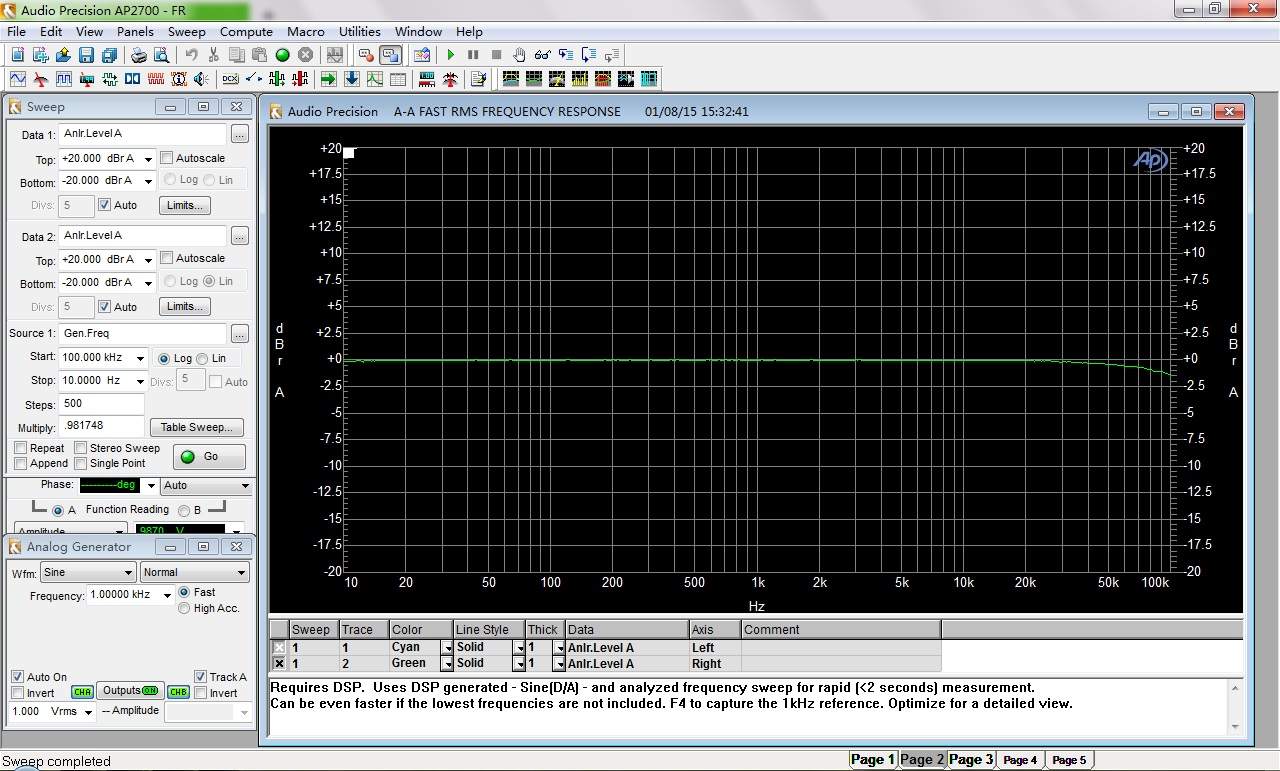

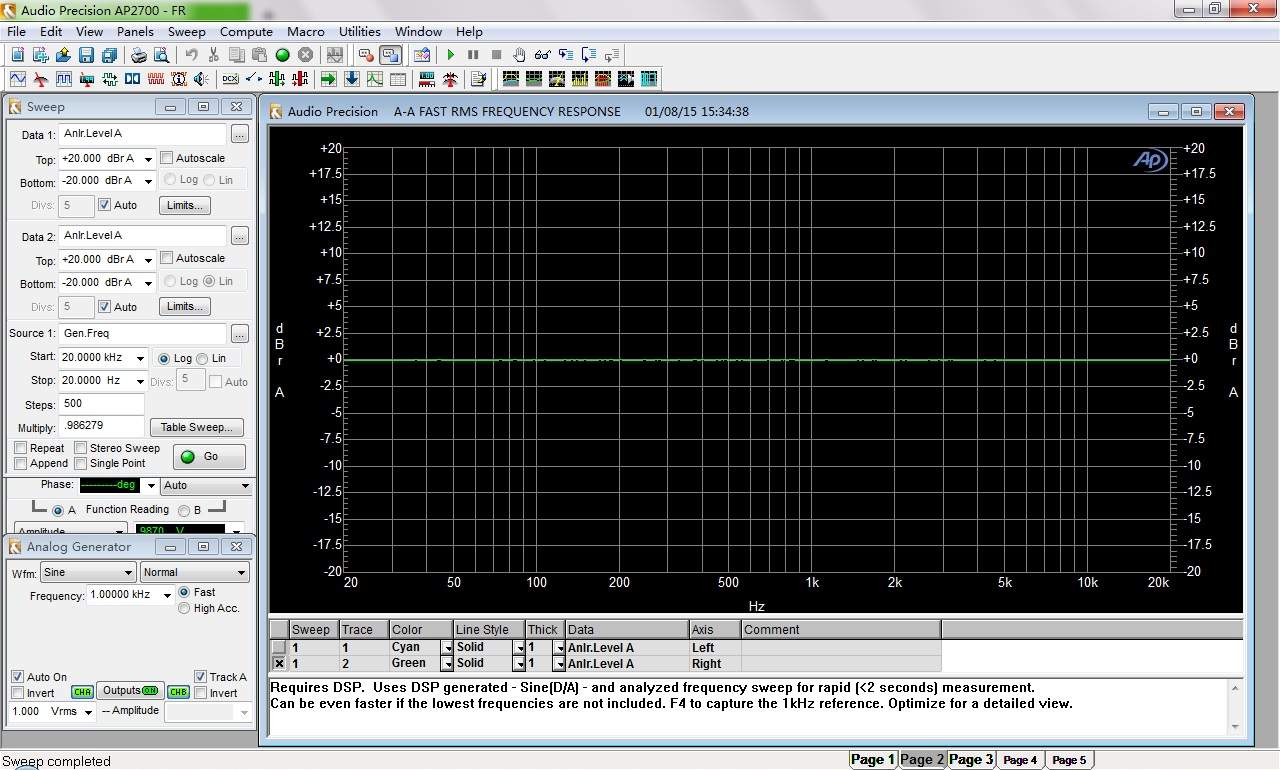

Frequency Band (XLR input)

20Hz - 20KHz ( +/- 0DB )
100Hz - 100KHz ( +/- 1.5DB )
1Hz - 300K (+0DB, -3DB)


¡@


Volume characteristic
¡@

100 steps Supper Exponential Volume Characteristic




Gain
¡@

+8DB  (XLR)
+16DB  (RCA)

Output Level (Max)

9.5V @ RCA
 19V @ XLR
4.8MA @ ACSS

Output Impedance

10 ohm @ XLR
>10M ohm @ ACSS


Input Impedance
¡@

94K ohm @ XLR
<5 ohm @ ACSS

Channels cross
¡@		 < -130DB

Channels imbalance
¡@		 < 0.01DB

Power Requirement

1 Version  100-120V  AC 50/60 Hz
2 Version  220-240V  AC 50/60 Hz

Power Consumption

70W Class A  @230V or 120V

Transformer Power

260W (3 unit transformers)

Package Weight

Approximately 19KG

Dimensions
¡@		 W430 X L450 X H125 (MM, Fully aluminium )

Accessories

Power cord  X1
¡@
¡@


¡@
