Click to review : RJ45 and HDMI pin definitions

The display auto dark : Push into the jumper is auto dark .Please operate the button while the unit power off .

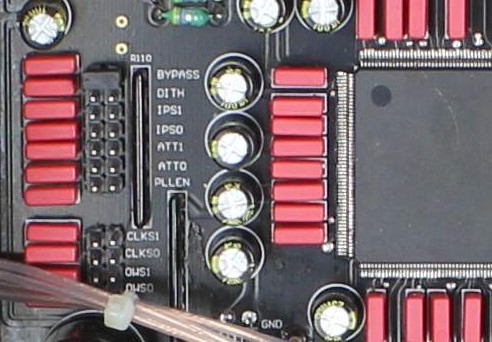

DSP-1 Jumpers setting

Jumpers Number	Setting		Functions describing
Jumper1 PLLEN	Active (OFF)	Bypass (ON)	PLL setting
Jumper6 DITH	Active (OFF)	Inactive(ON)	Data Dithering

Sound Flavor : Neutral <------------------------------------------------>Warm
ATT0 (OFF)	ATT0 (OFF)	ATT0 (ON)	ATT0 (OFF)	ATT0 (OFF)	ATT0 (ON)
ATT1 (OFF)	ATT1 (ON)	ATT1 (ON)	ATT1 (OFF)	ATT1 (ON)	ATT1 (ON)
IPS0 (OFF)	IPS0 (OFF)	IPS0 (OFF)	IPS0 (ON)	IPS0 (ON)	IPS0 (ON)

Note:    ON mean the jumper push on.
              OFF mean the jumper pull off.
             The NOS had bypass the filter, so it had high request from the source.
