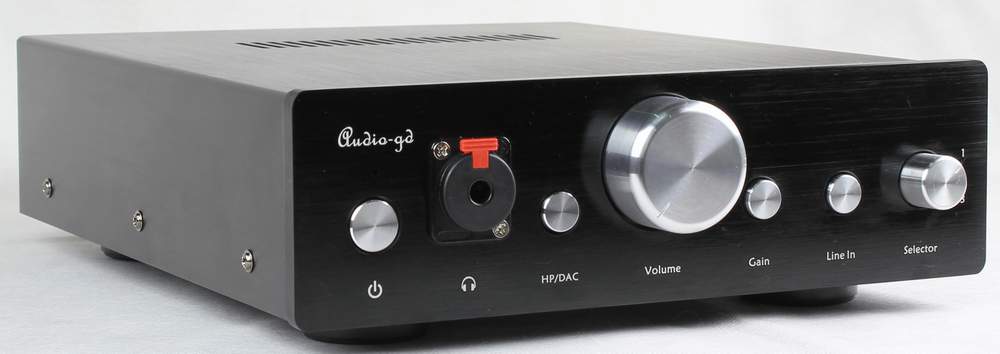

Compass 384 (32Bit / 384K)
Discrete DAC+ Head amp / Preamp / Line In
32bit / 384K Asynchronous Transfer USB-32 Chip
32bit / 384K dual DA chips
Price : USD399 (Promo, Exclude shipping cost)
Suggest : New Hifiers if confuse for the modules choice, we advice purchase the default version, after several hundreds hours burn in and evaluate which side want to improve for the best personal taste , then contact us for the modules choice and purchase .

Summarize

Use Manual

Specs

Technology Detail

Custom Option

Shipping Cost

Dual WM8741 USD55	DIR9001 USD22.5	WM8805 Default	OPA-Earth USD22.5	OPA-Moon USD25	OPA-Sun USD30

Click to read the USB-32 character USB-32 Introduce Driver download: http://www.audio-gd.com/AudiogdUSB32v2.0forwin.rar 384KHz /32bit support : Foobar 2000 V1.15 through KS / ASIO output model & OS iTune 384KHz / 24bit support: Foobar 2000 V1.15 WASAPI output model (DS output model support up to 24bit / 192KHz) Click to read the USB-32 character USB-32 Introduce What's new in the Compass 384 ?
	Compass 384	FUN	Compass (old version)
USB	32bit / 384K Asynchronous Transfer	24bit / 96K Adapt Transfer	16bit / 48K Adapt Transfer
D/A	Dual PCM5102	AD1852	AD1852
Caps	WIMA	EVOX	EVOX
Resistors	DALE	DALE	DALE
Amps design	ACSS	ACSS	Classis design
DAC design	ACSS feed to amp direct	Through OPA feed to amp	Through OPA feed to amp
Tansformer	45W( output continuously 24 hours :35W)	50W (output continuously 24 hours :30W)	50W (output continuously 24 hours :30W)
1, The Compass 384 had infinite upgrade possible in future , the USB , DIR, DA, ACSS modules can exchange without solder . ( All analog signal transfer in current model for avoid the sound degrade by the modules sockets . Digital signal have the impedance match for avoid sound degrade by the modules sockets . ) USB module: USB-32 sound characteristic is very neutral and a ton of details without harsh . It can cooperation with any DA modules. Up to 32bit / 384K support. DA modules : PCM5102 sound characteristic is very neutral and a ton of details without harsh . Dual WM8741 sound characteristic is neutral but slight on the warm side and smooth . Users can setting the digital filter characteristic with two jumpers. DIR modules : WM8805 sound slight warmer , support up to 192KHz . DIR9001 sound quite neutral, support up to 96KHz . OPAs : Users can exchange the OPA chips and discrete OPA modules for Line in without solder . OPA-SUN sound dynamic ,detail and speed . OPA-EARTH sound is neutral but slight warmer . OPA-MOON sound is a bit warm and smooth . 2, The Compass 384 have Line in, users can use it as a dedicate head amp / preamp . 3, The Compass 384 have Line out , users can use it as variable level as preamp or fixed output level as dedicated DAC . Summarize: Fully discrete analog stages without any OPA and couple caps in the signal channels. Non- feedback ACSS analog output stage . Total of 6 groups dedicated power circuits are used to purify the power supply. 45W high performance transformer and more than 25,000 UF audio grade caps . High-End grade parts built in , ALPS 27 volume pot , DALE resistors, WIMA caps and Toshiba transistors , gold plate pure copper RCA sockets ect. 4 channels input : Coaxial / Optical / USB / Analog Line IN DAC / Preamp output : RCA (User can setting with either variable level as preamp or fixed output level as dedicated DAC ) Headphone output : 6.3MM SE USB Audio Class 2 High-speed Input from Windows / MAC / Linux ( We can not guarantee it can working with every Linux device ) Supports High / full speed Asynchronous Transfer Mode up to 384K / 32Bit ability . Resolutions support 16 / 24 / 32 Bit with sampling rate support 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz,352.8kHz and 384kHz Supports up to 24Bit/192KHz ( SPDIF input )
