NFB-11.32 (Full 32Bit / 192K)

Discrete  DAC+ Headphone amplifier / Preamplifier
32bit / 384K Asynchronous Transfer  USB-32 Chip
32bit / 192K Sabre ES9018

Price :  299 (Promo,Exclude shipping cost  )
Accessories : Power cable and USB cable . If customers want optical cable please inform while place the order .





Summarize Use Manual Specs Technology Detail Custom Option Shipping Cost

Feedbacks:
http://www.head-fi.org/t/624517/audio-gd-nfb-11-32-delivery-impression-thread/60
http://vaiopocket.seesaa.net/article/291164866.html    (Japanese)

Click to read the USB-32 character
                              USB-32 Introduce

Fully  discrete analog stages without any OPA and couple caps in the signal channels.
Non- feedback ACSS analog output stage .

Total of 6 groups dedicated power circuits  are used to purify the power supply.
Applies a custom order ALPS 27 volume pot for reducing channel imbalance and improving on sound quality.

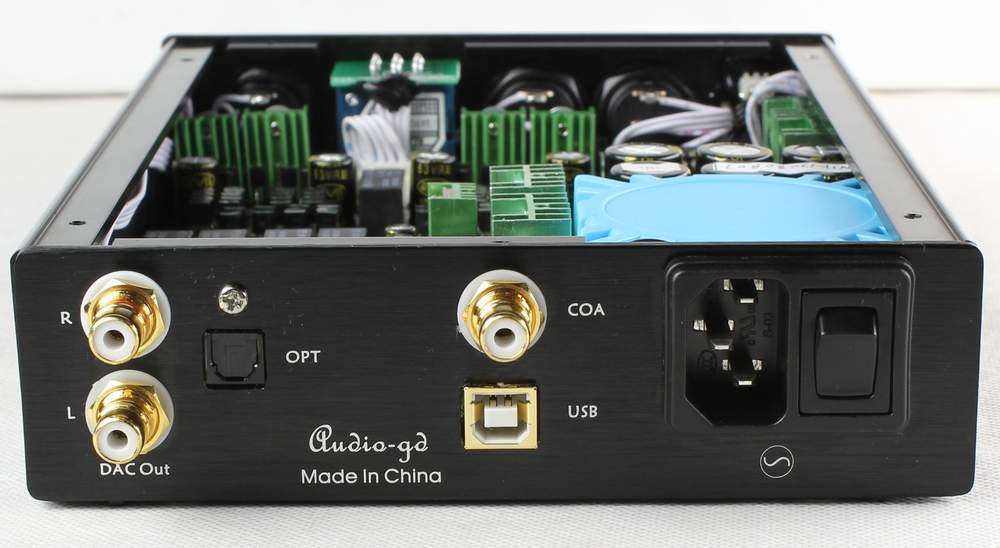

3 channels digital input :
  coaxial /  Optical / USB
DAC output :
  RCA  (User can setting with either variable level as  DAC with preamp combo or fixed output level as dedicated DAC )
Headphone output : 6.3MM SE
USB Audio Class 2 High-speed Input from Windows / MAC / Linux
Supports High / full speed Asynchronous Transfer Mode up to 384K / 32Bit ability .
Resolutions support 16 / 24 / 32 Bit with sampling rate support 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Supports up to 32Bit/192KHz (coaxial, USB  )
High-End grade parts built in , ALPS 27 volume pot , Toshiba optical receiver and transistors , gold plate pure copper RCA sockets ect.


Sound Characteristics:
           Very neutral and a ton of details without harsh .
¡@

What are the differences between these popular DAC chips:
¡@
¡@ Dual WM8741 ES9018 AD1955 AD1852 WM8740
SNR 128 DB (Mono) 120 DB(THD+N) 120DB 114DB 117DB
DYNAMIC RANGE 128 DB (Mono) 133 DB (Stero) 120DB 114DB 117DB


¡@
