NFB-29.38 (ES9038Pro)

The single ended version based on NFB-27
Discrete  DAC+ Headphone amplifier + Preamplifier
With 2 groups RCA  analog inputs

DSD , DXD support from USB and I2S inputs
32bit / 768K Sabre ES9038Pro
32bit / 384K Asynchronous Transfer
Amanero Combo 384
Built in OCC and TCXO ,no upgrade options





Summarize

Use Manual

Specs

Custom Option

Shipping Cost


Specifications might subject to change without prior notice for product improvement.

S/N Ratio


>120DB
@

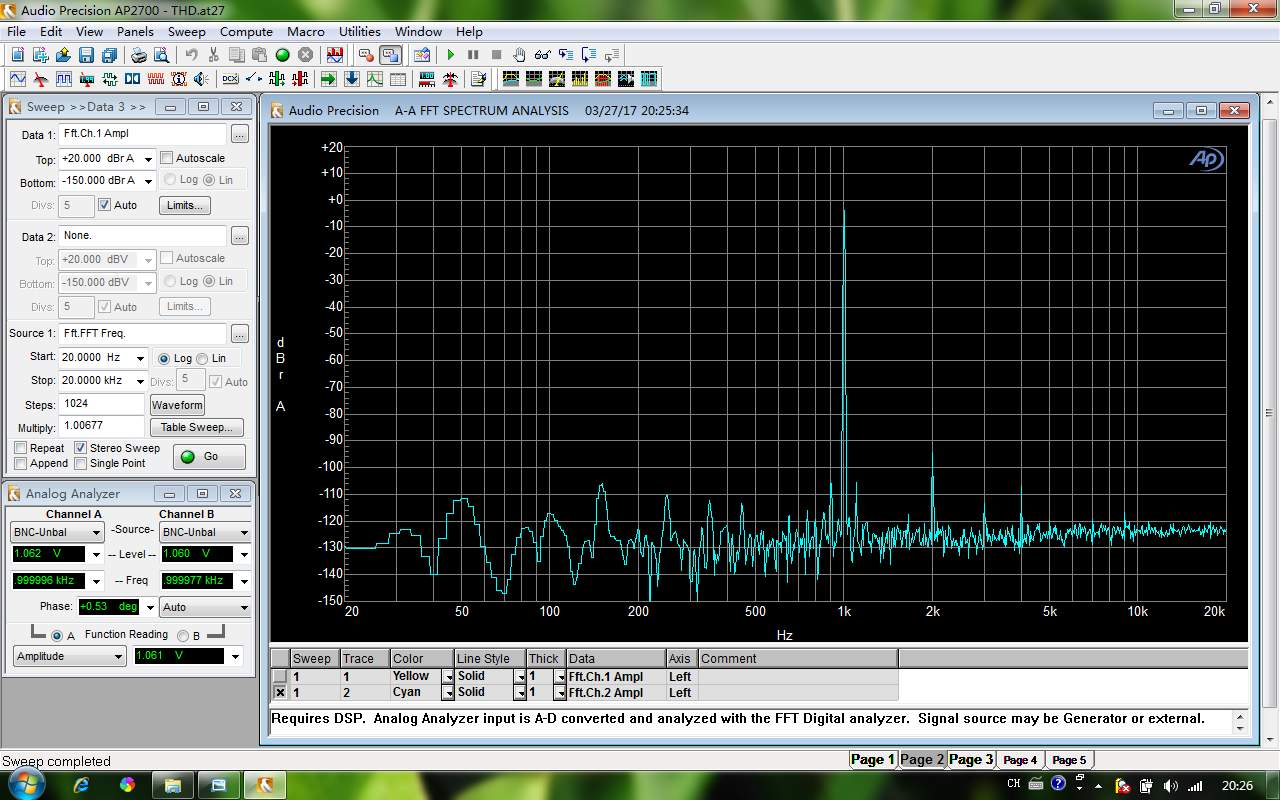

THD
@
<0.002% (0DBV output level )


Output impedance
@

2 ohm


Output Level
@

 Headphone output : 19V RMS
Preamp Variable output (balanced) : 10V RMS
ACSSG 2MA

Headphone amp output power level
(Only for  headphone.)

8000MW /  40 ohm
 3500MW  /  100 ohm
1200MW / 300 ohm
600MW  /  600 ohm

Digital Input Sensitivity

0.5 Vp-p(75 Ohms, Coaxial)
19 dBm (Optical)

Analog Input Sensitivity
0.7V RMS to 5V RMS
@

Gain
@
 +16DB

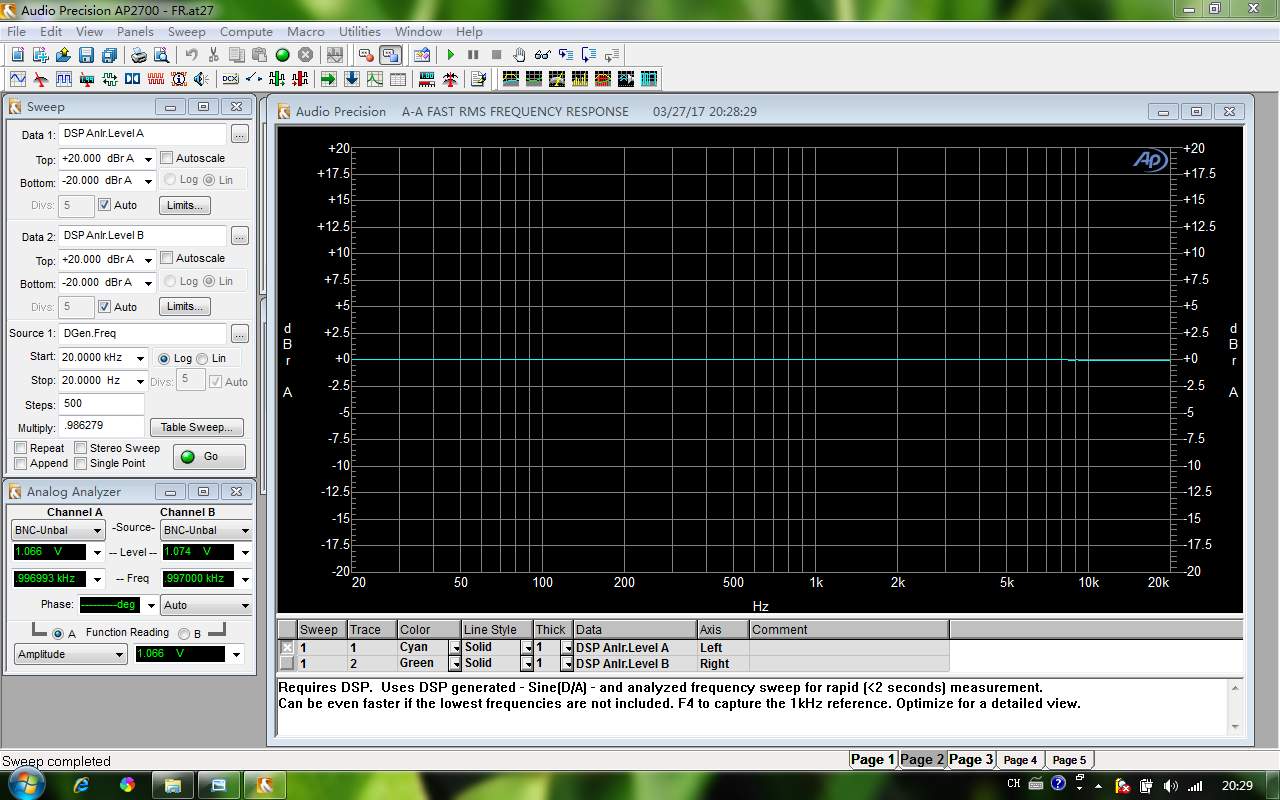

Frequency Response

20Hz - 20KHz ]<-0DB^(DAC +AMP)


Support Operate Systems (USB)
@

Windows, Mac

Support Sampling

 USB model: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz , 192kHz, 352.8kHz,384kHz
 Coaxial model: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz ,192kHz
Optical model: 44.1kHz, 48kHz, 88.2kHz, 96kHz

Power Requirement

Version 1: 100-120V  AC 50/60 Hz
Version 2:  220-240V  AC 50/60 Hz

Power Consumption

31W

Package Weight

Approximately 5KG


Dimensions
@

Approximately W240 X L360 X H80 (MM, Fully aluminium )

Accessories

AC power cord            X1
USB cable                X1
Mini remote controller  X1


@
