NOS 7(The PCM1704 Ultimate Design)
Dedicated Discrete Fully Balanced DAC

Fully new DSP software
Built in 8 Pieces  PCM1704UK
Supports up to 768KHz
32bit / 384K Asynchronous Transfer  Amanero combo384
OCC wires & TCXO applied




Summarize Use Manual Specs Technology Detail Custom Option Shipping Cost

Specifications might subject to change without prior notice for product improvement.
THD + N
109dB (22Hz - 22KHz)

(The NOS design had inborn worst specs than the Oversampling design,but in fact not worst. )

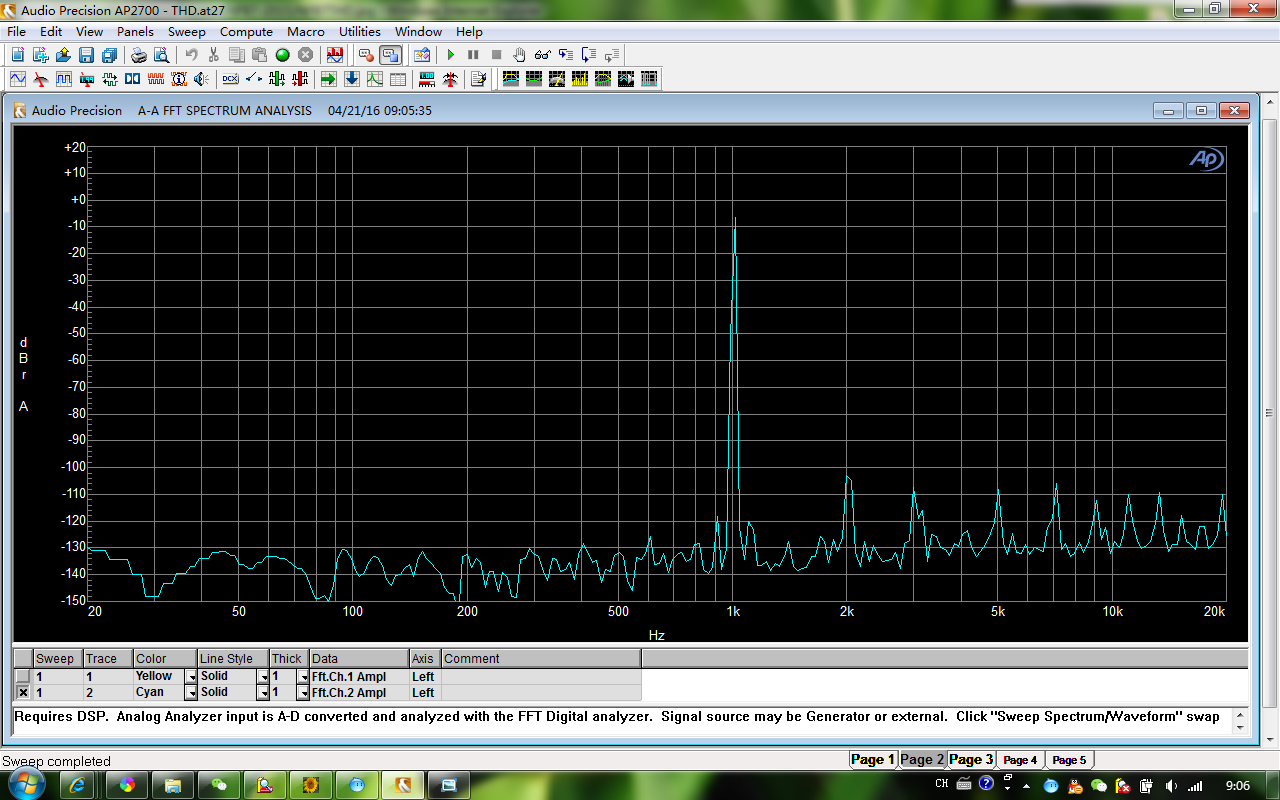

THD <0.0008% (20Hz-20KHz)

(The NOS design had inborn worst specs than the Oversampling design,but in fact not worst. )


Output impedance

10 ohm

Output Level

2.5V (RCA)
5V (XLR)
2+2MA (ACSS)
Frequency Response
20Hz - 20KHz ( - 1DB)

(The NOS design had inborn worst specs than the Oversampling design,but in fact not worst. )


Input Sensitivity


0.5 Vp-p ( 75 Ohms, Coaxial )
19 dBm (Optical)



Support Operate Systems (USB)


Windows, OSX, Linux, ISO

Support Sampling
USB / I2S mode: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz , 192kHz,352kHz,384kHz
BNC mode: 44.1kHz, 48kHz, 88.2kHz, 96kHz
 Coaxial mode: 44.1kHz, 48kHz, 88.2kHz, 96kHz ,192kHz
Optical mode: 44.1kHz, 48kHz, 88.2kHz, 96kHz

Power Requirement
 Version 1: 100-120V  AC 50/60 Hz
Version 2:  220-240V  AC 50/60 Hz

Power Consumption
48W

Package Weight
Approximately 15KG


Dimensions

W430 X L430 X H93 (MM, Fully aluminium )
Accessories
AC power cord            X1
USB cable   X1 ( USB version )
