DA-8

Built in 2 group R-2R discrete 24BIT / 3072K DAs work on PUSH/PULL mode
Built in DSD discrete DA
Auto switch between DSD and PCM
2 group IIS format inputs Or 1 group RJ format input

Promo Price: (Exclude shipping cost)
USD115 (2 pcs for build a single-ended stereo DAC, can selection either IIS or RJ format .)
USD208 (4 pcs for built a balanced stereo DAC,only RJ input format .)

Please inform you need the IIS input or RJ input:
1, IIS input usually for connect the USB module, SPDIF receive module to build the NOS DAC,it has 2 group input channels for connect two source modules, for example one USB+ one HDMI, or one USB + one SPDIF receiver.
2, RJ format input usually for connect the digital output to build the Oversampling DAC, it has one group input channel.



Summarize Shipping Cost


 Summarize:
Applied programmable chip , up to 450MHz working frequency, offer strong ability and can through the codes to improve the performance.
Multiple modes can selection.
         1, IIS input usually for connect the USB module, SPDIF receive module to build the NOS DAC,it has 2 group input channels for connect two source modules, for example one USB+ one HDMI, or one USB + one SPDIF receiver.
          2, RJ format input usually for connect the digital output to build the Oversampling DAC, it has one group input channel.

Support up to 24 BIT / 3072Khz in NOS mode, and 384Khz in 8x oversampling mode.

Low Power Consumption, only need +3.3V (+/- 5%) / 50mA power.

Recommend PSU for DA8:
       The PSU2019 class A PSU can work for DA8 ,separate the digital and analog power supply,  provide the smooth but transparency sound.
       One PSU2019 can power supply for 2 pc DA8 modules to build the single-ended stereo DAC , or two PSU2019 power supply for 2 pc DA8 modules to build the single-ended stereo DAC with mono power supply.
       One PSU2019 can power supply for 4 pc DA8 modules to build the balanced stereo DAC , or two PSU2019 power supply for 4 pc DA8 modules to build the balanced stereo DAC with mono power supply.
       Click the below photo to view the PSU2019 web page.





Example for simply apply (Other apply method depend on your design) :

Please note:
1, The product for DIY, before shipping ,we had the full check, but it may damage by wrong power connect or other case, so it had not warranty after shipping .
2, It working with 64 BCLK format data for the IIS input format, and 32 or 64 BCLK for the RJ input format .

The most simply USB NOS DAC circuit diagram (It had applied the USB power supply so the output voltage level is slight low, this example must with IIS input format)



Standard stereo NOS dac circuit diagram (the module input format depend on the source module, usually the IIS input format for the NOS DAC, RJ format for the Oversampling DAC) .

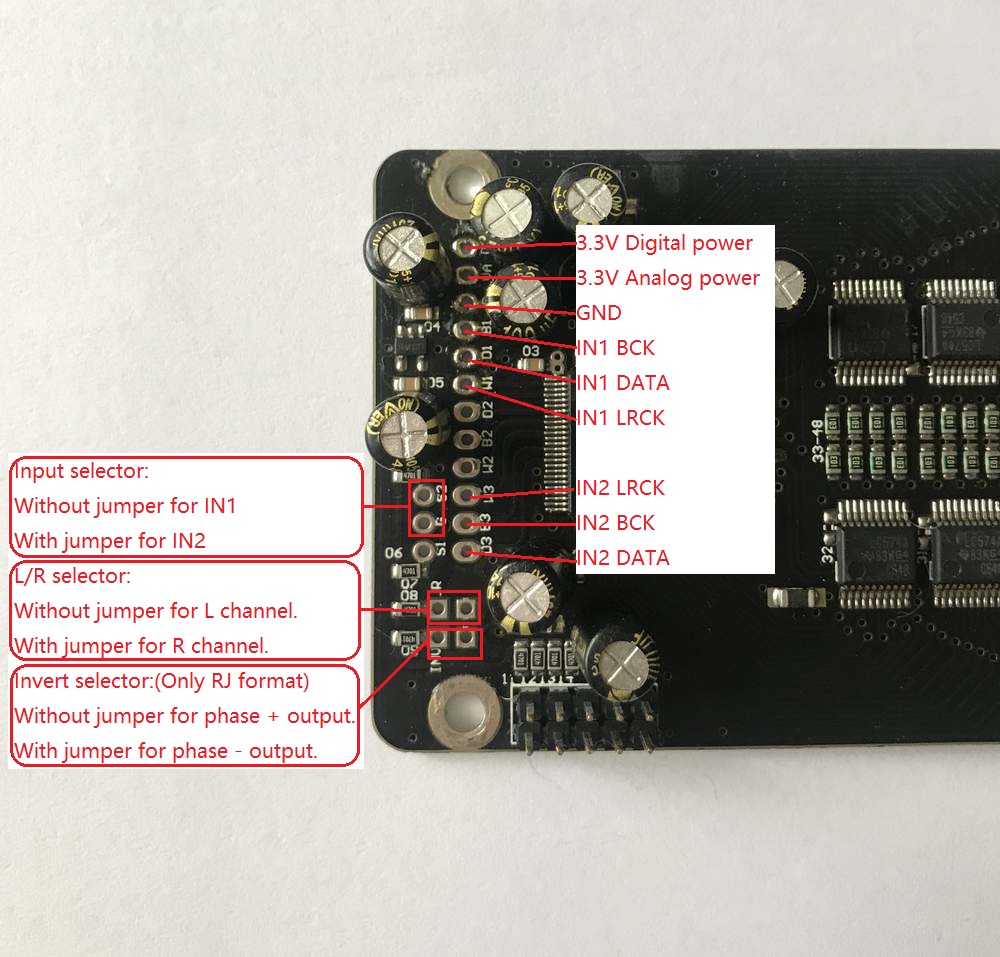

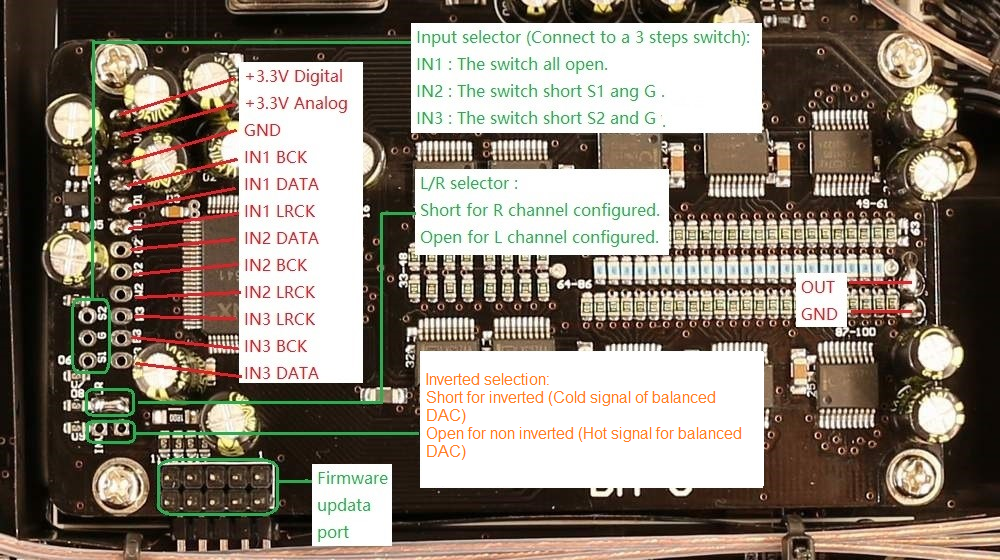

Setting guide:
Input selector only available with the module has IIS input format.
The module with RJ input format, only IN1 available.
Invert selector only available with the module has RJ input format.
The module with IIS input format, it is no function.
