R2R 2
|

 R2R 2 蒓C 2 组Θφ审╰统┪DAC + 玡级╰统购买R2R 2 + C2 ㄉ涩磃чΙ Click to view C 2 |
|
参数测试为产珇设竚为OS8经过声状态 и们ぃ断發―声禜痷Τ乐の家拟参数Τ变将ぃ︽ |
|
| S/N Ratio |
>108DB |
|
Output impedance |
<10 ohm (RCA) |
|
Output Level |
2.5V (RCA) 2MA (ACSS) |

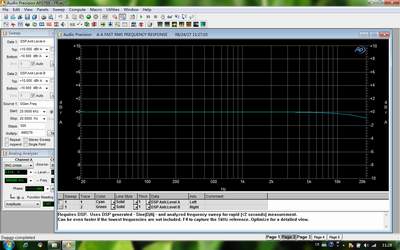

| Frequency Response |
20Hz - 20KHz (< - 1DB) |
|

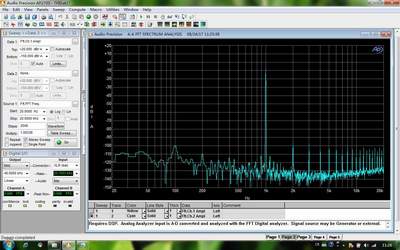

THD+N @ 1KHz |
<0.02% (Full Scale ) |
|
THD+N @ 20Hz-20KHz |
<0.04% (Full Scale ) |
| Input Sensitivity |
|
|
Support Operate Systems (USB) |
Windows, OSX, Linux, ISO |
| Support Sampling |
USB mode and HDMI: 44.1kHz - 384kHz /32Bit USB mode and HDMI: DSD64-256 Coaxial mode: 44.1kHz - 192kHz /24Bit Optical mode: 44.1kHz - 96kHz /24Bit |
| Power Requirement |
Version 1: 100-120V AC 50/60 Hz Version 2: 220-240V AC 50/60 Hz |
| Power Consumption |
15W |
| Package Weight |
Approximately 5KG |
|
Dimensions |
W240 X L320 X H80 (MM, Fully aluminium ) |
| Accessories |
AC power cord X1 USB cable X1 |
|
