NFB-17.32
分立件平衡DAC

32bit / 384K 异步传输 USB-32 芯片
两片Hi-end级WM8741芯片


售价:     RMB 2830 (含国内顺丰运费及运输保险)





概述 使用指引 规格 技术细节 定制选项

击查看    FAQ
点击查看 USB-32 特性            USB-32性能介绍
Audio-gd 的产品均基于 AP SYS-2722 (最顶级的专业音频测试仪) 进行设计及测试



全晶体管无反馈CAST输出电路,信号通道没有使用运放IC进行放大及没有使用耦合电容。
R牛供电
使用并联甲类稳压电源
供电,总数使用7组稳压电源,超过38,000UF audio滤波电容

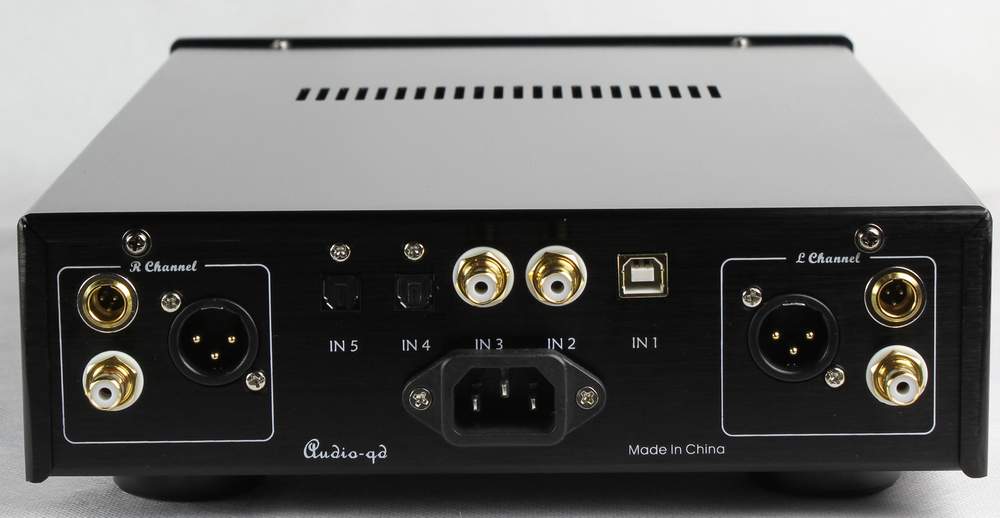

5路数字输入 :  2 X RCA 同轴 / 2 X 光纤 / 1 X USB
DAC 输出 :   XLR / RCA / CAST
支持用户设置  2X , 4X and 8X
过采样率
即使关闭电源,都可以记忆到用户关机前的状态。

音质音色特点:"Neutral but smoothness sounding ,it doesn't sound skeletal or digital (or metallic). There's meat aplenty on them bones . It's a sigma-delta DAC chip implementation without the dryness, neutrality without the emotional disconnection" - John Darko

“中性而耐听的音质,不单薄也没有数码味(或金属味),声音丰满,是sigma-delta芯片设计但不干硬,中性而没有失去情感表达”- John Darko



Bruno from France (14th June):
            Hi everybody ! Looking for a balanced relatively not too expensive ? Your search is over , NFB-17/17.2 should be on top of your list .
When Audio GD said , on the neutral side with a touch of smoothness i can't agree more . For me it's a very accurate DAC sounding , nothing seams exagerated or standing for. The tonal balance for me seams great .

          Highs , they extand well , with a good amout of energy , detailled , crystal clear , it gives a gound sense of clarity / transparency . On harsh / bad recording , depending on the filter used , you can smooth it a little .

          Mids : well balanced it's what come in mind , with yet a touch of warmness , wich give a nice touch to vocals or electric guitare . There is DAC with a more upfront mids , but i am happy with what i hear from NFB-17.2 .

          Bass : Not loose at all , thigh , well layered , with a decent amout off impact / pratt , again like for mids , there is DAC with more bass in quantity , but NFB-17.2 is on the neutral side soo like i said before , nothing exagerated .

          Soundstage is really fine , a lot of air , a clean background , a good instrument separation and positioning , it's quite wide , and deep , first time i heard the NFB-2 (but the same occur to NFB-17.2) it give me an impression of a " 3D sounding" if you understand what i mean .
It seams a detailled DAC sounding ,on NFB-17.2 i rediscovered some track with some little things that i never heard before like turning pages on a classical concert etc .

          For the TE8802 it works flawlessy , 192khz files played with sucess so it work has it should , ASIO drivers in the drivers works too . Soo it's a goot upgrade from the older TE7022 .

         To summarise this is a very well balanced DAC , it's not here to wow you , but to bring your music how it's intended to be , but peraphs with a touch of smooth and warmness , a good bridge beetween musiquality and neutrality , connectivity is awesome , but i don't need so much , but it's better to have more than enough . Higher end dacs can improve things , but for the NFB-17.2 price you can't be sorry .

          If i had to upgrade my DAC i will look to An Audio GD one :) .





Eric from New Zealands (21th Aug.):
             I would like to tell you how happy I am with my NFB-17.32 Balanced DAC.


             My system is now fully balanced with a Forte Audio 55 power amp and a Forte F 44 Preamp driving a pair of Accapella Fifth Avenue MK1 speakers


            The AG DAC has lifted this system to new heights with outstanding detail and control and a sound-stage that give each performer a sense of space,amazing!
The detail is achieved without sounding bright or harsh and the overall sound is best described as organic. Your DAC is one of my best audio purchase for many years.
