The HE series products had the
longest term of design and test in audio-gd history . Even though audio-gd
had release the regenerative power supply products since 2006, and Mr.
Kingwa had publish the article in the <Radio & TV> magazine explain
the technology detail .
The HE series products had finished
the design in the New Year of 2014 , we were plan to release
them in the date of audio-gd 10 anniversary , but for got
the best sound quality and performance, we have even 3 times
change the full design for made the compare, and compare different power frequency
and voltage, create the longest design term record.
The HE series products have better detail
and dynamic reproduce ,blacker backstage ,better focus and
larger sound stage , but the sound is better analog .
The right saddle must is set on the right
horse ,if you had not enough good system units, and had not
enough cable match experiences, don't waste the money on HE
series products.
Please note the HE series products are upgrade
from Master series, even though the price had a big rate
increased but the sound quality had not same rate improved.
Audio-gd products had
design and test based on the AP SYS-2722 (The top-drawer
professional equipment in world)

Full isolate with the AC
power line

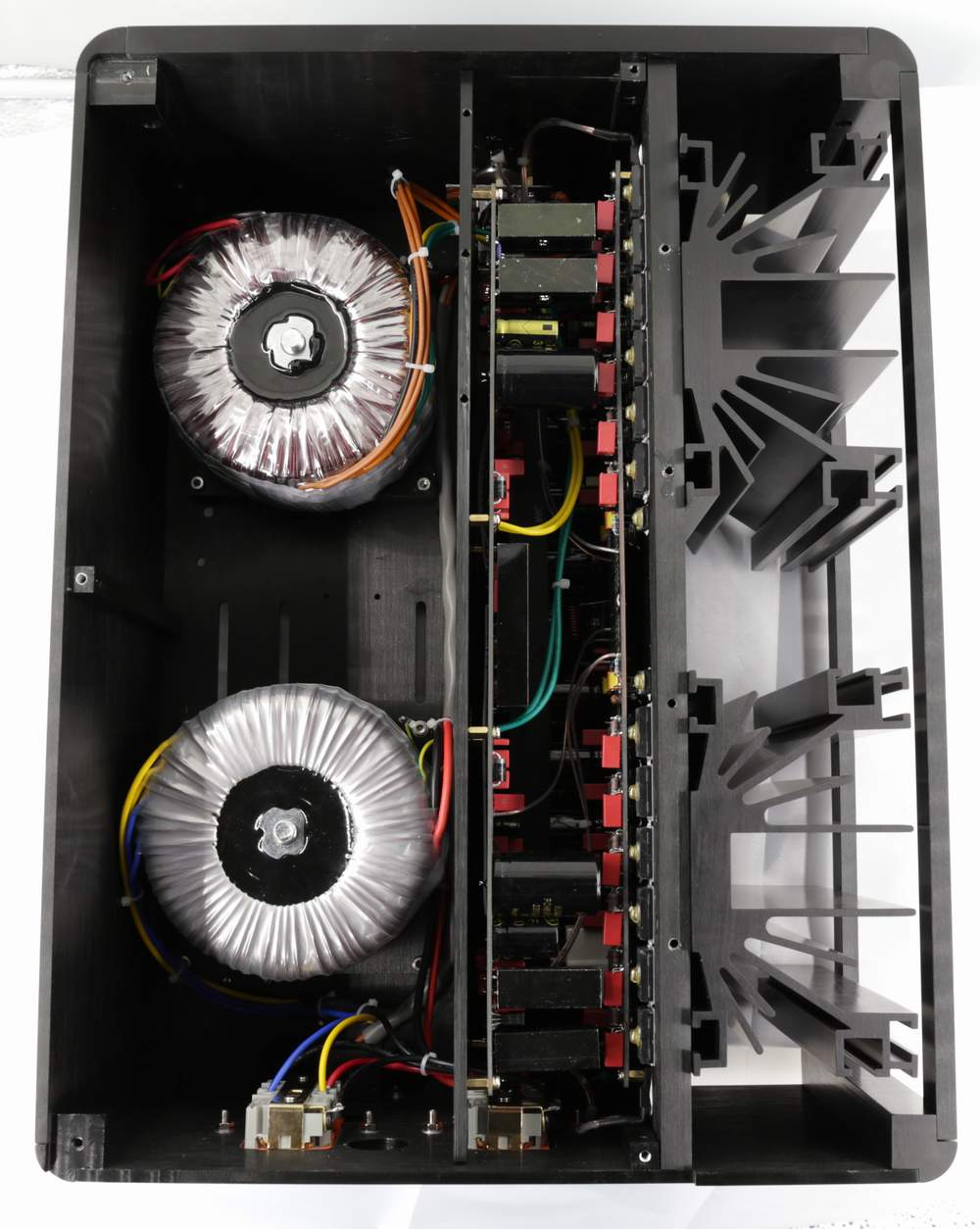

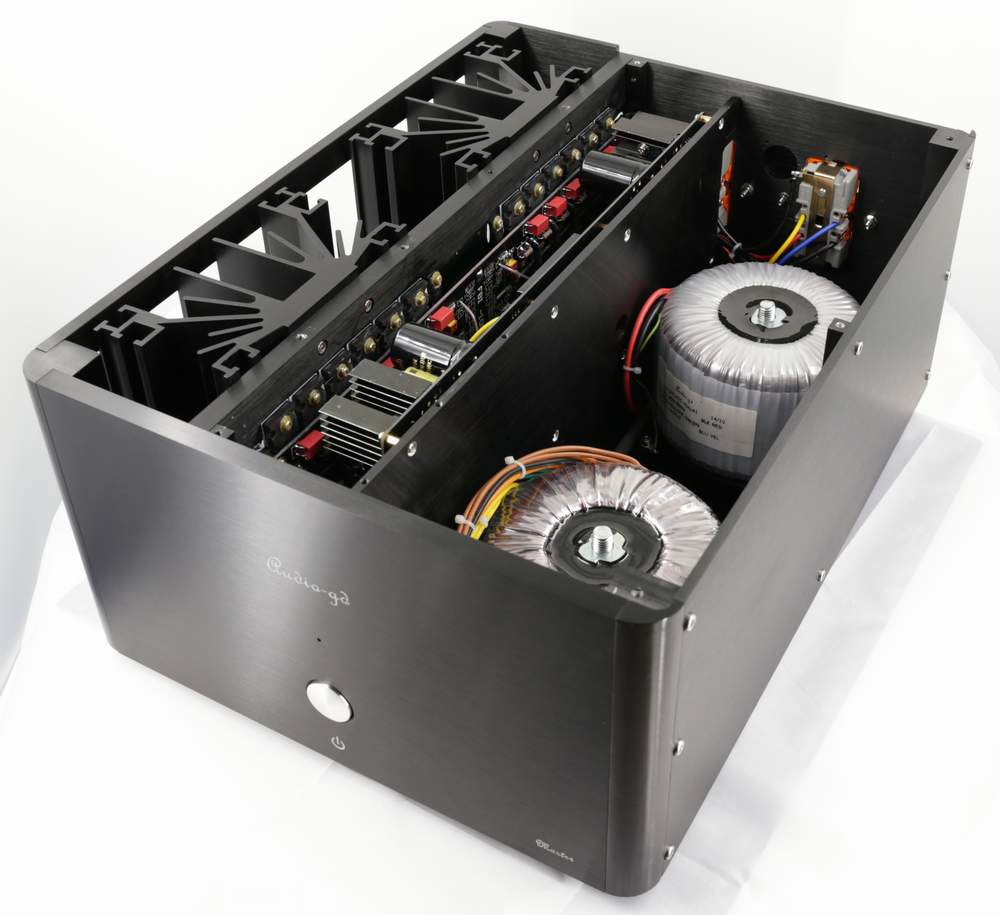

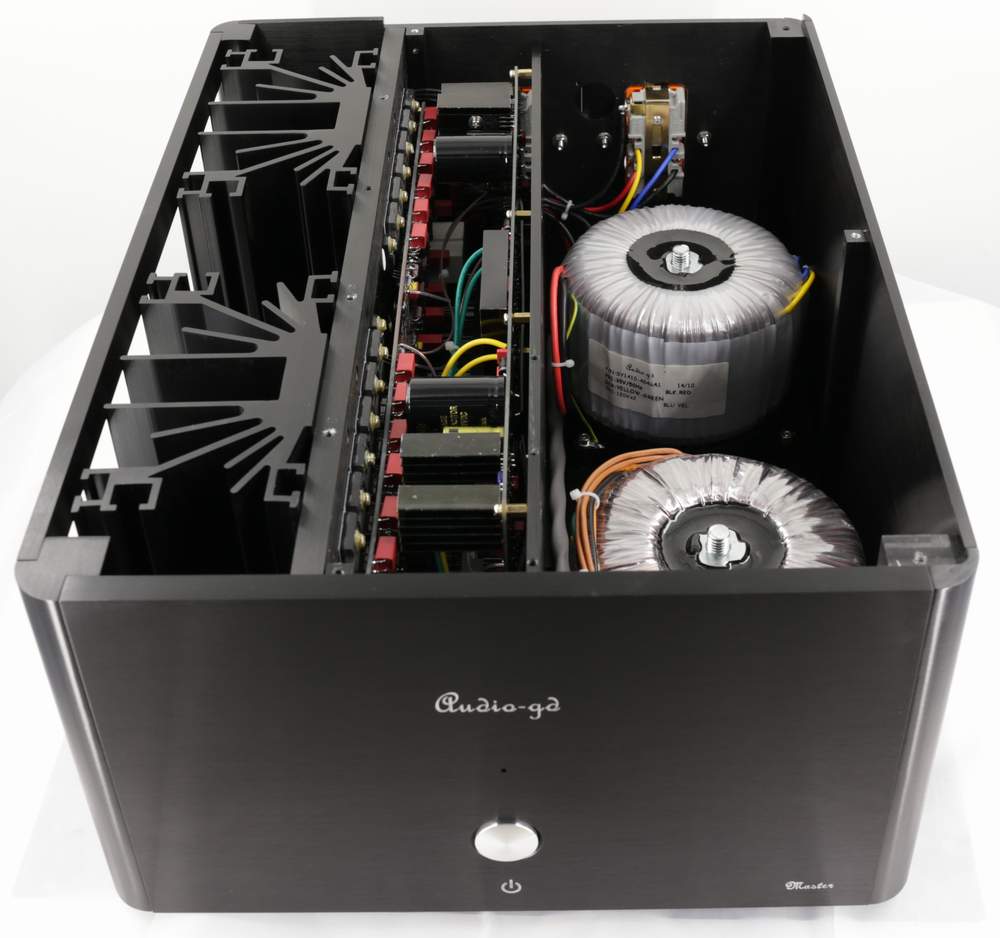

Uses 650W transformers and more than 100,000uf audio grade NOVER capacitors are used to ensure
ample and smooth power delivery.

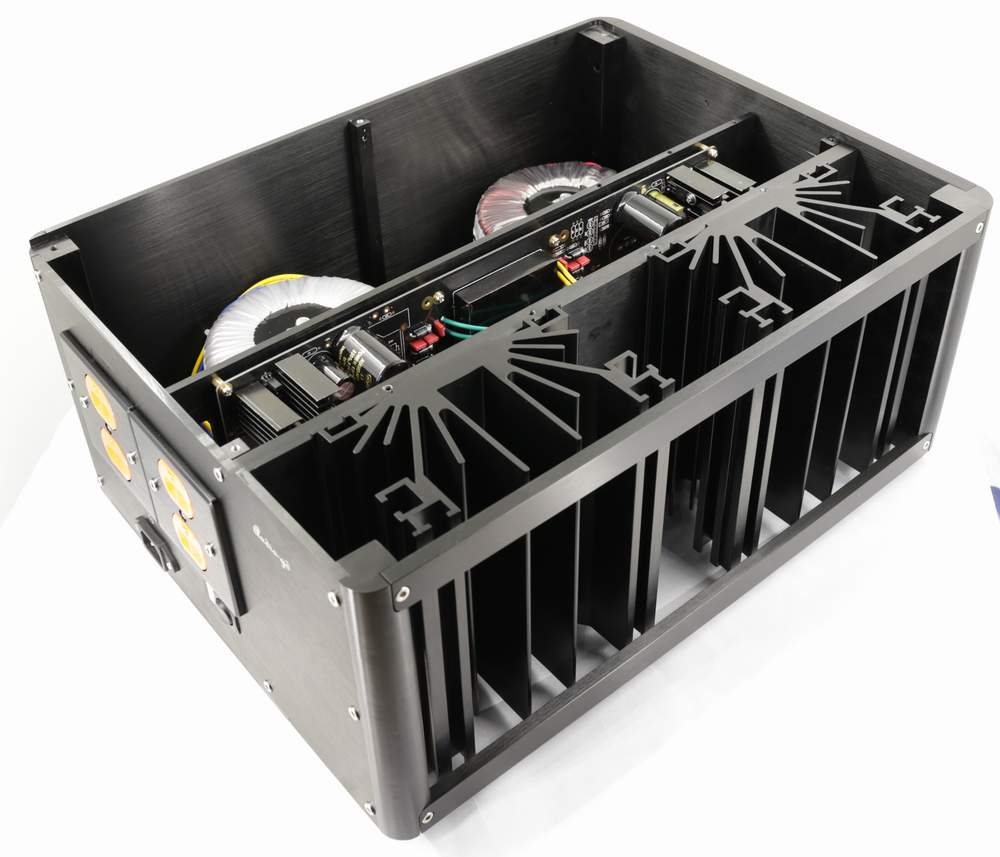

Applies 24 pieces transistors ( in total had 3900W ) to
drive the 650W output transformer for 350W AC power output.
Class A PSUs power supply for regenerative drivers .

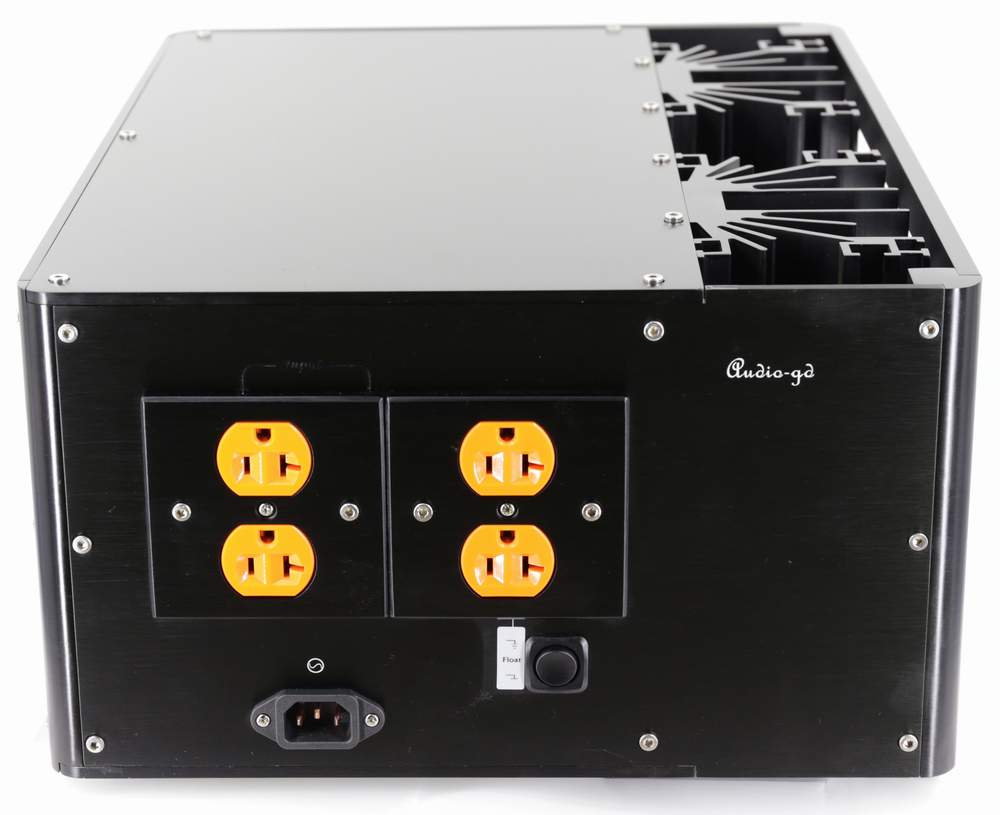

4 groups US AC outlet , max power output achieve 350W, enough
power supply for DACs, preamps and headphone amps (It can't
power supply for power amps)
¡@
|
Detail of the Current Conveyor Technology
What's the regenerative power supply :
While
audio is life , the Power supply is water , Pure water create
the wonderful life ,clean power supply reproduce the
beautiful sound .
The regenerative power supply like a
proprietary electric generator built in the unit.
It can block most
disturb from the power line , supply the ultra clean power supply for
the audio amps , reproduce the most neutral and analog sound
like audio signal for the system and the users.

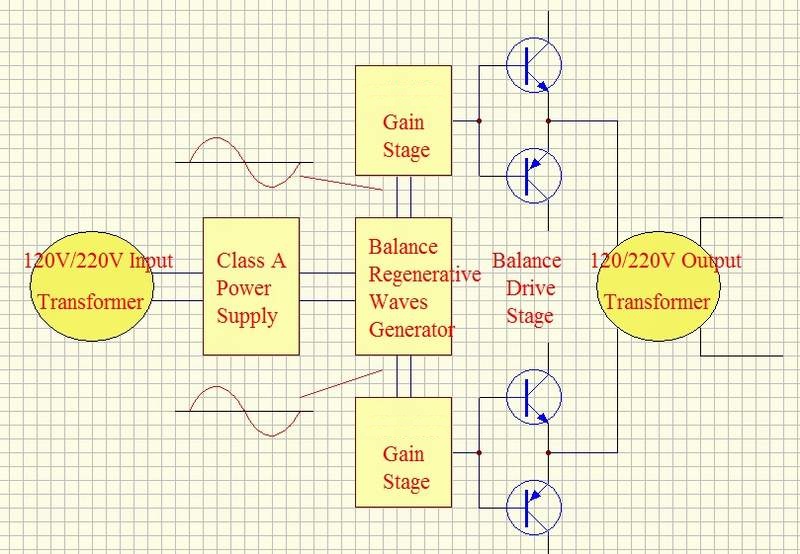

In the
regenerative power supply design, the AC power through the
regenerative input transformer
, conversion to DC power ,through the class A PSUs power supply
for the regenerative wave generator and driver stages .
A balance regenerative regular wave
generator produce the ultra low distortion 50Hz wave ,through the
balance gain amps and the strong output stages ,
drive the regenerative transformers produce the clean AC power
supply feed to the separate class A PSUs power supply for the L and R
channel preamps .
The class A
parallel connection PSU has very high input impedance to avoid
disturb through the PSU from affecting the signal parts and low
output impedance with very fast speed and high linear, it
is a very clean power supply.
Audio-gd
on the regenerative power supply design points :
1,
Through analyzed the AP SYS-2722 , full analog design of the
regular wave generator have much lower distortion than the
digital generator.
2,
Digital drive stages have higher efficiency , but full analog
drive stages have much better analog sound like .
3, 400Hz regenerative wave have higher efficiency , 50Hz
regenerative wave had much far away the human ears sensitivity
area than the 400Hz, boost the sound have much better analog
sound like.

Components:
Uses all audiophile grade
components, including DALE resistors, WIMA caps, custom
order NOVER (UK brand) caps, all audiophile grade input & output
sockets (Neutrik ) and gold IEC socket. HE-1 all parts of four channels had exact match before install. |
|
