Improvement may result in changes in
specifications and
design without notice. |
|
S/N Ratio
¡@
|
>130DB |
 |
|
THD
¡@ |
<0.003 % |
 |
|
THD + N |
<0.005% (1K Hz)
<0.012% (20-20K Hz) |
 |
|
Gain
¡@
|
Low Gain : +16 DB (XLR)
High Gain :
+26DB (XLR) |
|
Volume characteristic
¡@
|
100 steps Supper
Exponential Volume Characteristic |
 |
|
Headphone amp
Output Power
(Balanced , Pure Class A )
¡@
|
40 ohm: 9000MW
100 ohm: 3800MW
300 ohm: 1250MW
600 ohm: 630MW
¡@ |
|
Headphone amp
Output Power
(Single-ended , Pure Class A ) |
40 ohm: 2500MW
100 ohm: 1050MW
300 ohm: 350MW
600 ohm: 175MW
¡@ |
|
Preamp Output Level (Max) |
10V @ RCA
20V @ XLR
2.4+2.4MA @ ACSS |
|
Output impedance |
1 ohm |
|
Input impedance
¡@
|
90K ohm
@ XLR
<10 ohm @ ACSS |
|

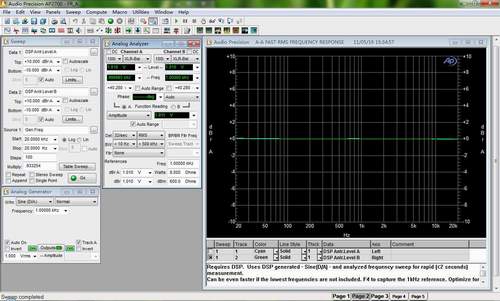

Frequency Breadth (XLR input) |
20Hz - 20KHz
( +/- 0DB )
1Hz - 220K (+0DB, -3DB) |
 |
|
Channels cross
¡@ |
> 130DB |
|
Channels imbalance
¡@ |
< 0.05DB |
|
Power Requirement |
1 Version 100-120V AC 50/60 Hz
2 Version 220-240V AC 50/60 Hz |
|
Power Consumption |
45W
@240V or 120V |
|
Package Weight |
Approximately
7KG |
|
Dimensions
¡@ |
W360 X L290 X H75(MM, Fully aluminium )
|
|
Accessories |
Power
cord
X1
Combo remote controller X1 |
