NFB-20.2

Discrete  DAC+ Headphone amplifier / Preamplifier
Supports full speed Asynchronous Transfer Mode
Built in the Tenor TE8802 chip
Built in 2 Pieces Hi-end grade WM8741 Chips


Price:  USD1480  (With remote control)





Summarize Use Manual Specs Technology Detail Custom Option Shipping Cost

¡@

About ACSS:
         ACSS (Audio-gd Current Signal System) is Audio-gd's system for transmitting audio signals in the current domain. This concept, first seen in 1966, we have used for many years, and since 2005, have evolved the technology to include all audio signals in our systems from the digital source to the power amplifier. Since 2006, ACSS comp5nts have become Audio-gd's most popular products.


ACSS:
          The NFB-20 applied real balanced fully discrete amp without any OPAs (the OPAs in NFB-20 only for DC serve) ,without any couple caps ,fully non- feedback . Applies the 2 Pieces  high-end grade WM8741 which can support up to 24Bit/192KHz input . Compare to other  WM8741 designs , we applied Non-feedback ACSS analog stages. The 2 pcs  WM8741 feed to the ACSS analog stages without any OPAs and couple caps so it can avoid sound coloration .
          The ACSS is a non-feedback technology made with fully discrete amplifiers. Most people know the global feedback design can offer better specs in test measurements, and classic non-feedback can't do well in test measurements but can offer better sound for the human's ears. Here is a conflict of the classic circuits. But the ACSS opens a new field, it can offer a least coloration sound which is more neutral with very low distortion and high linearity. So it can retain the dynamics, detail and neutral sound but not sound bright or harsh.



Output buffer:
         The output buffers are Non-feedback. For low impedance, we applied a diamond output stage which is quite less colored than most conventional circuits.
         The analog part is without couple caps to avoid coloration, and power supply by four groups class A PSUs.
         Applies ACSS technology, even though maybe you only connect to XLR or RCA output, NFB-20 will always operate in ACSS technology, and benefit from ACSS technology. Therefore, XLR and RCA output will also definitely bring about improvement in sound quality. Even through RCA output, the 2pcs WM8741 DA chips will perform fully.



Power supply:
         NFB-20 applies the excellent 2 pcs  WM8741 with  excellent analog output amps, but these are not the only keys of the best sound. The power supply is most important. Even applying the best DA chip and the best amp, if matched to a normal power supply, the total sound may still be average or sound musical, but can't be neutral and detailed. That is why it is easy to find hi-end grade gears maybe without the best chips or amp stages, but with plenteous dedicated DC supply circuits.
        The NFB-20 uses 11 groups of high-quality class A parallel connection PSU , which can offer very clear DC power for the DAC and amps, producing a very black background and neutral sound characteristic. The class A  PSU is very important for digital parts. Some designs may have very low jitter in theory, but if the power is supplied by a dirty or low-speed power supply, it will increase the jitter and pollute the data, and degrade the sound quality obviously.
        The class A parallel connection PSU has very high input impedance to avoid pulse through the PSU from affecting the DAC and low output impedance with very fast speed and high linearity, so it is a very clean power supply. In my experience, its sound is better than battery power supply, better human sound and neutral.

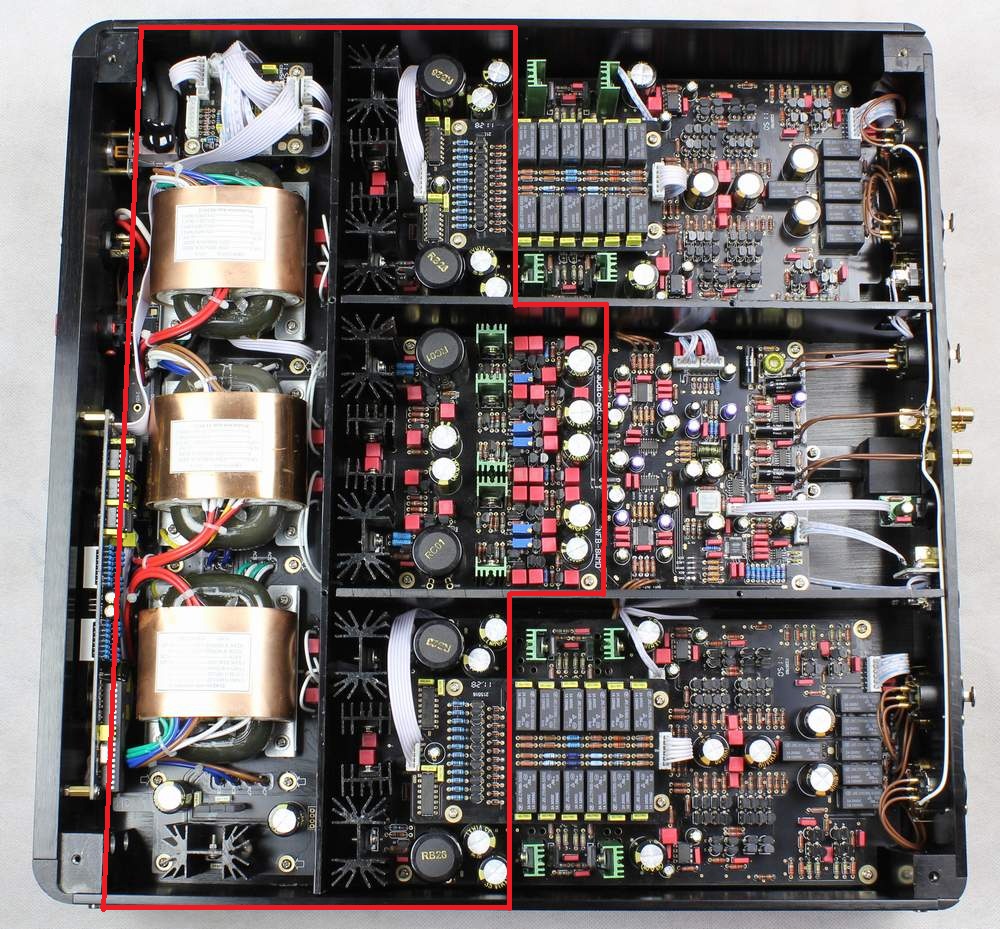

        The NFB-20 uses three high performance transformers. More than 50,000uf audio grade NOVER capacitors are used to ensure ample and smooth power feed. A total of 11 groups class A SPUs and 2 groups linear PSUs are used to purify the power supply. To achieve high S/N, the control circuit is powered with separate regulator.



Volume control:
        In NFB-20 is applied a four channels digital control relays based volume control to avoid channel imbalance and improve on sound quality . The NFB-20 has 99 steps volume control rang allow users smooth to control the volume level .
        The volume control is also different from conventional technology. Conventional volume control technology is
the volume control implement in the analog amp input stage through a volume pot to reduce the signal  . The volume pots quality effect the sound quality direct , the low quality volume pot cause lost the detail and channels imbalance cause the soundstage distortion  . Even the high performance volume pot still cause the detail lose. Whatever quality volume pots, must cause the S/N worst .

But in the NFB-20 , we applied the I/V conversion volume control , the volume control just  a variable passive I/V conversion place at the ACSS amp output , where the output is the current signal, not the voltage signal. The volume control is I/V conversion, and the volume depends on the current (I) conversion to the voltage (V). (Like R-2R D/A chips output passive I/V conversion)  It can keep the signal frequency band flat and not lost any detail. It can't degrade on sound quality in every volume level . After the volume , there are four groups  diamond non-feedback buffer output stages offer the very low output impedance  .
         Mark Levinson also knows that current volume control has great benefits, so in their Top End preamp NO.32 volume control, they use many components to change the signal to current signal (I), then
implement the volume control , and then change back to voltage signal (V) again. But NFB-20 is simply a more complete work in terms of the current signal, and technically, it is superior to conventional technology. The less conversion bring much neutral sound .
         The volume control quality is much important in the real balance gear . It must guarantee the four channels signal control exact to achieve the performance of the real balance gear .  If the cool and hot of the balance signal can't guarantee exact, the balance output will has large distortion cause the sound quality and performance even much worst than a single end gear waste the  balance gear  design and the cost.
         In NFB-20 is applied a four channels digital control relays based volume control. .NFB-20 has total four channels through changing the DALE resistors to control the volume for avoid channels imbalanced ,achieve the best performance and sound quality of the gear.
         NFB-20 allow users select between 99 steps exponential characteristic volume control and 70 steps linear characteristic volume control, whatever volume control allow users smooth to control the volume level .
         The NFB-20 has memory of all control data even power off .

Shield:
         NFB-20 has complete separation of left, right amplifier channels, power supply, and transformer.
         NFB-20 uses heavyweight all-aluminum alloy chassis to prevent the eddy current of transformers from interfering on circuit board.

     NFB-20 applies optical couple isolation for the MCU and the control implementations to prevent the MCU affecting the audio parts.



¡@
