Frequency response diagram from RCA / XLR /ACSS output:
( Click to zoom) |

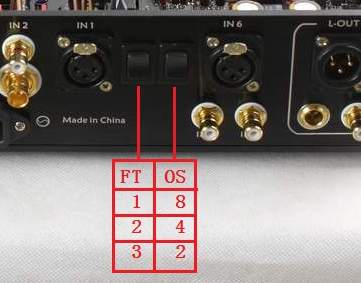

Display
OS=8, Filter = 1 : |
Input sampling
44.1KHz,24Bit,
-2.5DB at 20KHz |
Input sampling
48KHz,24Bit,
-0.2DB at 20KHz , -3DB at 23KHz |
|
8X oversampling , Minimum
phase apodising filter.
Support up to 48KHz
. |
|
|
|
|
|
|
|
Display
OS=8, Filter = 2 : |
Input sampling
44.1KHz,24Bit,
-0.2DB at 20KHz , -3DB at 25KHz |
Input sampling
48KHz,24Bit,
-0.2DB at 20KHz , -3DB at 25KHz |
|
8X oversampling , Linear phase apodising filter.
Support up to 48KHz
. |
|
|
|
|
Display
OS=8, Filter = 3: |
Input sampling
44.1KHz,24Bit,
-2.5DB at 20KHz |
Input sampling
48KHz,24Bit,
-0.2DB at 20KHz , -3DB at 23KHz |
|
8X oversampling , Linear phase
half-band filter for backward compatibility.
Support
up to
48KHz .
|
|
|
|
|
Display
OS=4, Filter = 1: |
Input sampling
44.1KHz,24Bit,
-3DB at 15KHz |
Input sampling
48KHz,24Bit,
-3DB at 17KHz |
Input sampling
96KHz,24Bit,
-0.2DB at 20KHz , -3DB at 31KHz |
4X oversampling , Minimum phase 'soft-knee' filter.
Support up to 96KHz
. |
|
|
|
|
Display
OS=4, Filter = 2 : |
Input sampling
44.1KHz,24Bit,
-3DB at 15KHz |
Input sampling
48KHz,24Bit,
-3DB at 17KHz |
Input sampling
96KHz,24Bit,
-0.2DB at 20KHz , -3DB at 31KHz |
4X oversampling , Linear phase
'soft-knee' filter.
Support up to 96KHz
. |
|
|
|
|
Display
OS=4, Filter = 3 : |
Input sampling
44.1KHz,24Bit,
-2.8DB at 20KHz |
Input sampling
48KHz,24Bit,
-0.3DB at 20KHz , -3DB at 24KHz |
Input sampling
96KHz,24Bit,
-1DB at 20KHz , -3DB at 42KHz |
4X oversampling , Linear phase 'brickwall' filter.
Support
up to
96KHz . |
|
|
|
|
Display OS=2, Filter = 1: |
Input sampling
44.1KHz,24Bit,
-3.2DB at 20KHz |
Input sampling
48KHz,24Bit,
-2.5DB at 20KHz , -3DB at 22KHz |
Input sampling
96KHz,24Bit,
-0.5DB at 20KHz , -3DB at 25KHz |
2X oversampling , Minimum phase 'soft-knee' filter.
Support up to
192KHz .
|
|
|
|
|
Display
OS=2, Filter = 2:2 : |
Input sampling
44.1KHz,24Bit,
-3.5DB at 20KHz |
Input sampling
48KHz,24Bit,
-2.7DB at 20KHz |
Input sampling
96KHz,24Bit,
-0.8DB at 20KHz , -3DB at 25KHz |
2X oversampling , Linear phase
'soft-knee' filter.
Support up to
192KHz . |
|
|
|
|
Display
OS=2, Filter = 3 :
|
Input sampling
44.1KHz,24Bit,
-2.5DB at 20KHz , -3DB at 22KHz |
Input sampling
48KHz,24Bit,
-2DB at 20KHz , -3DB at 23KHz |
Input sampling
96KHz,24Bit,
-0.2DB at 20KHz , , -3DB at 40KHz |
2X oversampling , Linear phase 'brickwall'
filter.
Support up to
192KHz . |
|
|
|
