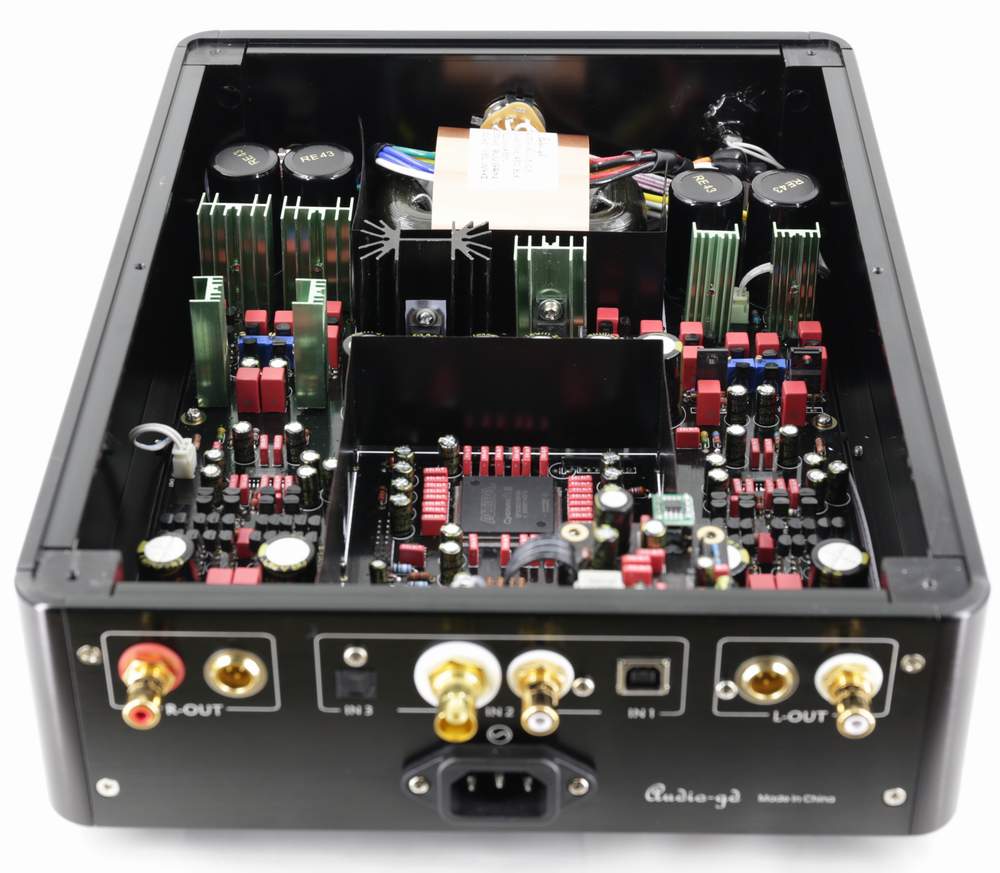

NOS 19

PCM1704UK & DSP built in
32bit / 768K support
32bit / 384K Asynchronous Transfer  XMOS U208 Chip
C
lass A PSUs and Class A analog amps design






Summarize Use Manual Specs Custom Option Shipping Cost

Specifications might subject to change without prior notice for product improvement.
THD + N
109dB (22Hz - 22KHz)
(The NOS design had inborn worst specs than the Oversampling design )
THD <0.0008% (20Hz-20KHz)
(The NOS design had inborn worst specs than the Oversampling design )

Output impedance
10 ohm

Output Level
2.5V (RCA)
2MA (ACSS)
Input Sensitivity
0.5 Vp-p(75 Ohms, Coaxial)
19 dBm (Optical)
USB1.0 / 1.1 / 2.0 / 3.0 (The USB speed lower than 2.0, support up to 96K )
Frequency Response
20Hz - 20KHz ( - 1DB)
(The NOS design had inborn worst specs than the Oversampling design )

Support Operate Systems (USB)


Windows , OSX

Support Sampling
 USB and I2S modes: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz , 192kHz, 352kHz, 384kHz
 Coaxial and Optical mode: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Power Requirement
 Version 1: 100-130V  AC 50/60 Hz
Version 2:  220-240V  AC 50/60 Hz
Power Consumption
16W
Package Weight
Approximately 5KG

Dimensions
W240 X L320 X H80 (MM, Fully aluminium )
Accessories
AC power cord            X1
USB cable                X1
