DI-V2    （Without DSP-3.1）
DI-DSP（Built in DSP-3.1）
USB / Coaxial converter
Supports full speed Asynchronous Transfer Mode
Built in the Tenor TE8802 chip
Price:        DI-V2-S       USD108 ( USB input only )
                  DI-V2          USD128 ( USB & coaxial inputs)
  DI-DSP-S    USD168 ( USB input only )(Discontinued)
  DI-DSP USD198 ( USB & coaxial inputs) (Discontinued)

DI-V2

DI-DSP

Summarize

Use Manual

Specs

Technology Detail

Custom Option

Shipping Cost

How to install the TE8802 driver?

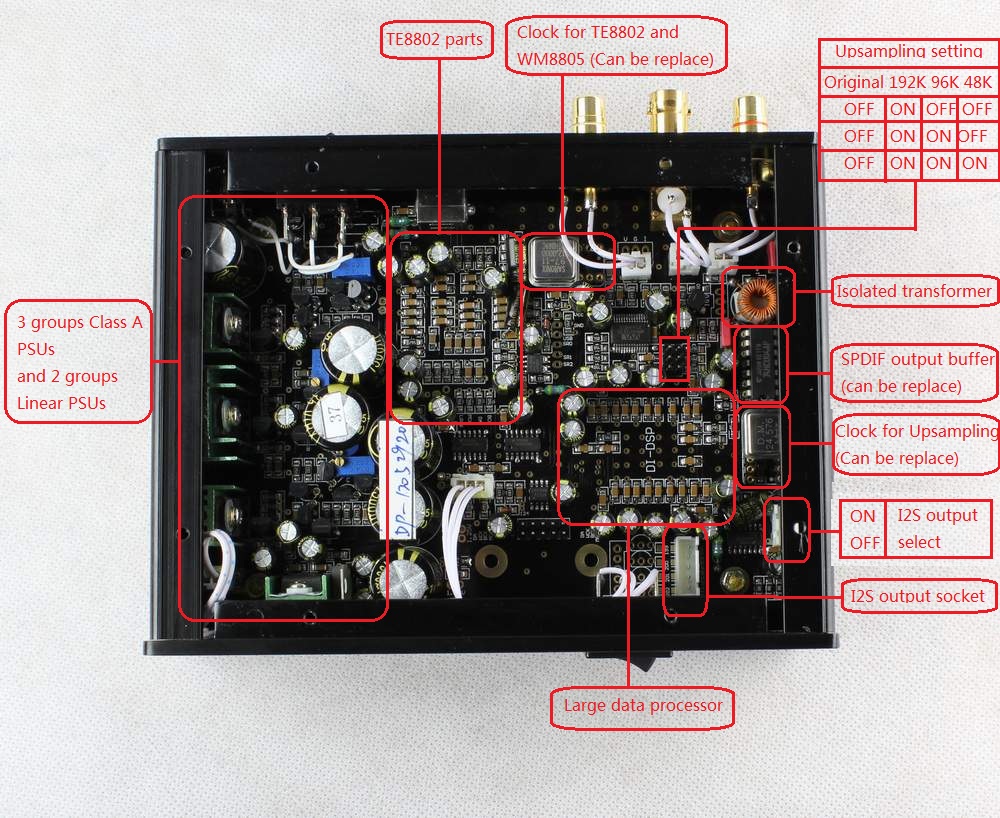

Built in 3 Groups Fully Discrete Class A power supplies so it can power supply by computer USB power . (DI-DSP has built in total 5 group PSUs) *
Applies Current Conveyor Technology for coaxial output
Built in DSP-3.1 for reprocess the data and clock (DI-DSP version only)
Provision I2S output connector
USB Audio Class2 High-speed Input from PC/MAC (using the Tenor 8802 chip)
Supports full speed Asynchronous Transfer Mode
Supports up to 24Bit/192KHz
Supports DSP-3.1 asynchronous processor for reduce jitter and improved on sound quality. (DI-DSP version only)

2 groups digital inputs : Coaxial & USB (Support up to 24bit/192KHz)

Two model coaxial outputs * : (Supports Original sampling and upsampling )

             BNC (Applied Current Conveyor Technology)*
             RCA (Transmit insulate )

*     The Current conveyor output can cooperate with most standard DACs in world but some DACs can't cooperate . The transmit insulate model output can cooperate with any standard design DACs.

*     The DI-DSP version spend around 500MA , some computer maybe can't offer 500MA current through USB pot cause the DI-DSP can't working. We test by MacBook, SONY, IBM and Sumsang notebooks without problems.

*      2 in 1 USB cable maybe can improved on sound quality .

Feedback :
http://www.head-fi.org/forum/thread/500369/new-audio-gd-product-audio-gd-digital-interface/300

http://www.tweak-fi.com/apps/blog/show/5029064-the-usb-to-spdif-shoot-out-review-part-2

The review of old DI from John Darko.
http://www.digitalaudioreview.net/2011/07/audio-gd-digital-interface-class-a-psu/

　

Feedback from users (Since 25th May, 2012):

10th June , Dr. John from USA:
I am using the DI-DSP as a pre-dac jitter reducer. I must say I did not expect a great deal of improvement as my DAC, the Anedio D2, already has some of the most sophisticated jitter reduction circuitry available. Boy was I wrong! I am using a relatively inexpensive CD transport, the Tascam CD200. The DI has proven to be a real winner in my brutally revealing system. There is much greater instrumental separation and better soundstage placment. I listen mostly to orchestral music where even small differences can make the difference between "music" and a pale reproduction. I am simply amazed by the difference the DI made with a $250 CD player. Thanks for an excellent product and superb service.
　
