Click to read the USB-32
Windows XP, Vista , WIN 7
(32bit and 64bit) must install
driver for USB connect .
The driver must unzip by RAR . Before install the driver , users
must connect to the computer USB port and power on
the unit , after install the driver ,
restart the computer is necessary .
1¡AThe USB under Mac OSX and Linux , coaxial input without
driver install necessary .
2¡ARecommend player in Windows :
Foobar2000 V1.15 with plugs foo_out_ks
3¡AThe stock USB cable is custom order have low impedance , can through
enough current power supply for DI-V3, if
users replace by other USB cable and power supply by USB, please
make sure the USB cable have enough low impedance .
4¡ADon't setting the USB control panel higher than 24bit / 192KHz
while applied coaxial output .
cable choice rule : Short length and good shield .
6¡AAdvice the users who own audio-gd DACs had built in USB-32 don't want
upgrade to the DI-V3

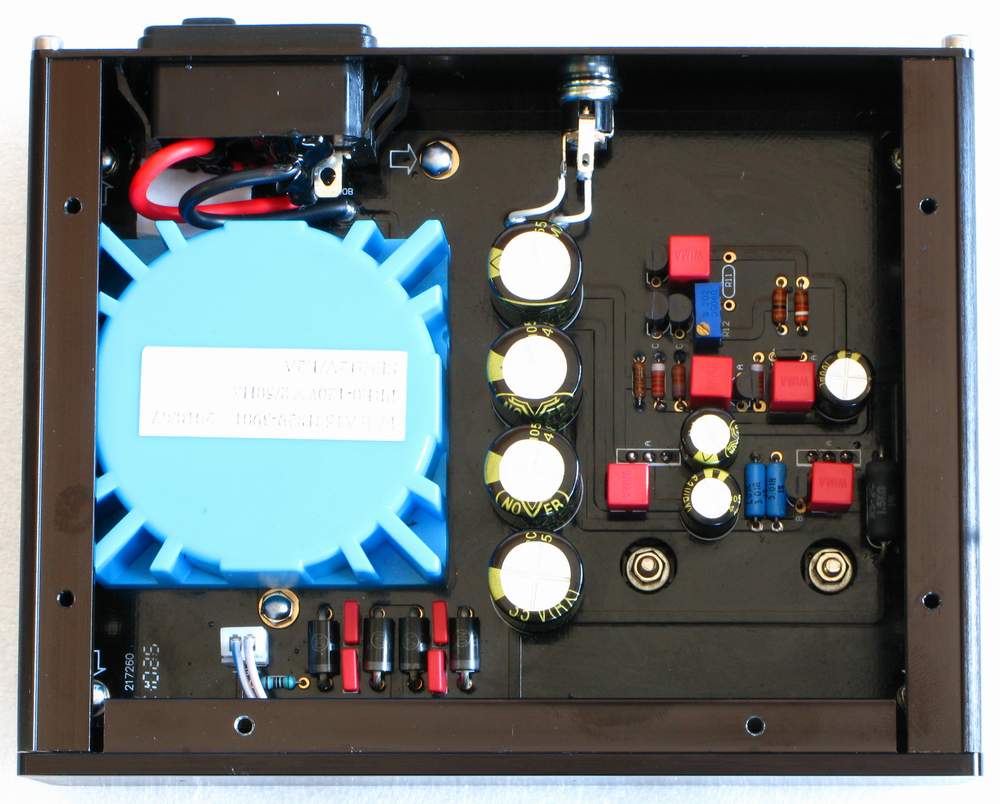

Built in 3 Groups Fully Discrete Class A power supplies so it can
power supply by computer USB power .
Applies Current Conveyor Technology for coaxial output
USB Audio Class2 High-speed Input from Windows / MAC / Linux
Supports full speed Asynchronous Transfer Mode
USB conversion to I2S
output support 16 / 24
¡A 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz , 352kHz , 384kHz
Firmware #3 , I2S transfer have not worldwide standard so have not
Coaxial input conversion to I2S output support up to 24Bit/192KHz
Coaxial output support
16 / 24-Bit ¡A 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Two model coaxial
outputs * :
BNC (Applied Current Conveyor Technology)*
(Class Transmit insulate )
* The Current conveyor output can cooperate with
most standard DACs in world but some DACs can't cooperate . The transmit
insulate model output can cooperate with any standard design DACs.
