D-77 (2021 version)

(Dual ES9038Pro +1 FPGA )

Dedicated Discrete Fully Balanced DAC
Built In FPGA Processor to Reject Jitter
Dual Sabre ES9038Pro
32bit / PCM384K /DSD512 asynchronous transfer Amanero 384 apply the FPGA synchronous clock
HDMI & USB support up to DSD512
Built with OCC and Hi-end parts








Note:  The photos are the 2020 version.
Summarize Use Manual Specs Custom Option Shipping Cost

Specifications might subject to change without prior notice for product improvement.
S/N Ratio
>120DB  (XLR output)

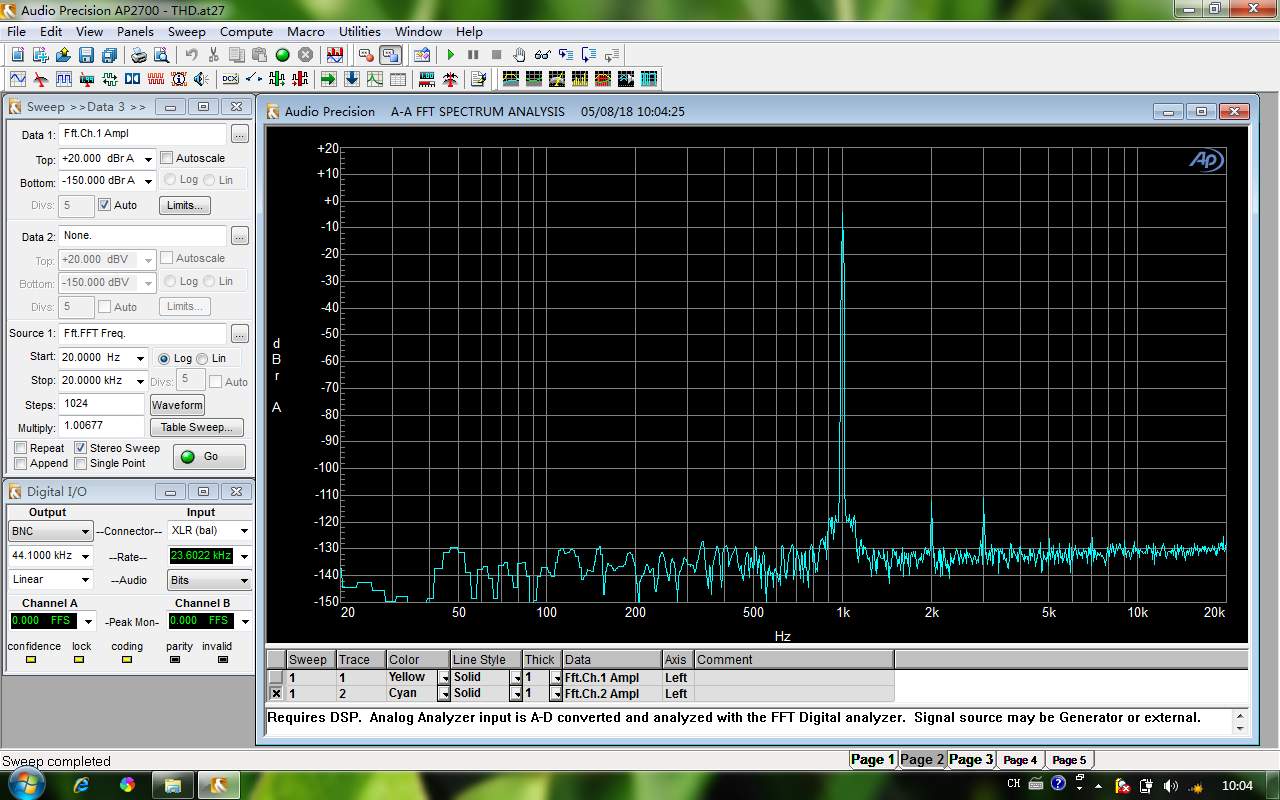

THD

<0.0003%

Output impedance

4.7 ohm

Output Level

2.5V (RCA)
5V (XLR)
2+2MA (ACSS)
Input Sensitivity
0.5 Vp-p(75 Ohms, Coaxial)
19 dBm (Optical)

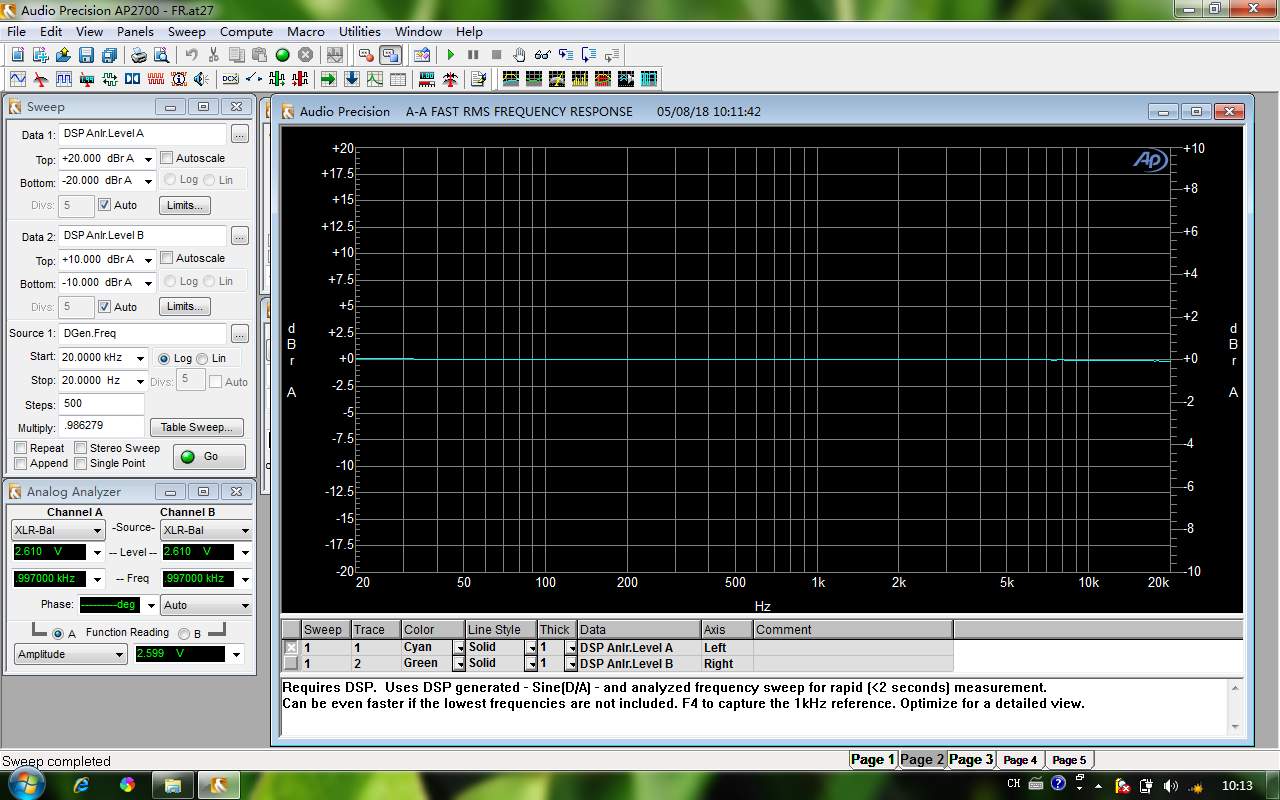

Frequency Response
20Hz - 20KHz (< - 0.1DB)


Support Operate Systems (USB)



Windows , OSX ,Linux, ISO


Support Sampling

PCM of USB and I2S: 44.1kHz-384kHz
DSD of USB and I2S: DSD64-512
 Coaxial model: 44.1kHz-192kHz
Optical model: 44.1kHz-96kHz

Power Requirement
 Version 1: 100-130V  AC 50/60 Hz
Version 2:  220-240V  AC 50/60 Hz

Power Consumption
30W

Package Weight
Approximately 5.5KG


Dimensions

W240 X L360 X H80 (MM, Fully aluminium )
Accessories
AC power cord            X1
USB cable                X1
