About NFB-7.38
Simple and short signal transfer is best:
The NFB7.38 applies the newest ESS high-end Sabre32 DA chip
ES9038 which can support up to 32Bit/384KHz input .
ES9038
in voltage output model , there is -12DB THD+N worst , to be
achieve the best performance of ES9038 , must work in current
output model .
In some other ES9038 built in DAC design ,
ES9038 output signal have to through 3 step OPAs implement analogy
signal process .
The NFB7.38 had different design , applies Non-feedback ACSS
design. The ES9038 feed to the ACSS
circuit by balanced model without any OPAs .
The ACSS circuit naturally working in
current model and have design difference current input , it can
transfer the ES9038 current signal to output and implement the I/V
conversion in current model in one ACSS amp . And this ACSS amp only
have one current gain stage , the ES9038 output signal only through
one stage can arrive the output stages .
The shortest signal journey can reproduce the best
detail and dynamic, and almost without sound coloration , It can
show the real performance of the ES9038 .
So our ACSS design is the best combo with
ES9038 achieve the best performance .
The ACSS also is a non-feedback
technology made with fully discrete amplifiers. Most people know the
global
feedback design can offer better specs in test measurements, and
non-feedback can't do well in test measurements but can offer better
sound for the human's ears. Here is a conflict of the classic circuits.
But the ACSS opens a new field, it can offer a least coloration sound
which is more neutral with very low distortion and high linearity. So
it can retain the dynamics, detail and neutral sound but not sound
bright or harsh.
The output buffers are
Non-feedback. For low impedance, we applied a diamond output stage
which is quite less colored than most conventional circuits.
The DAC is without couple
caps to avoid coloration. There are two OPAs built in as the DC serve to
keep the DC offset .
The 32bit / 384K USB interface
outputs a I2S signal to ES9038 .

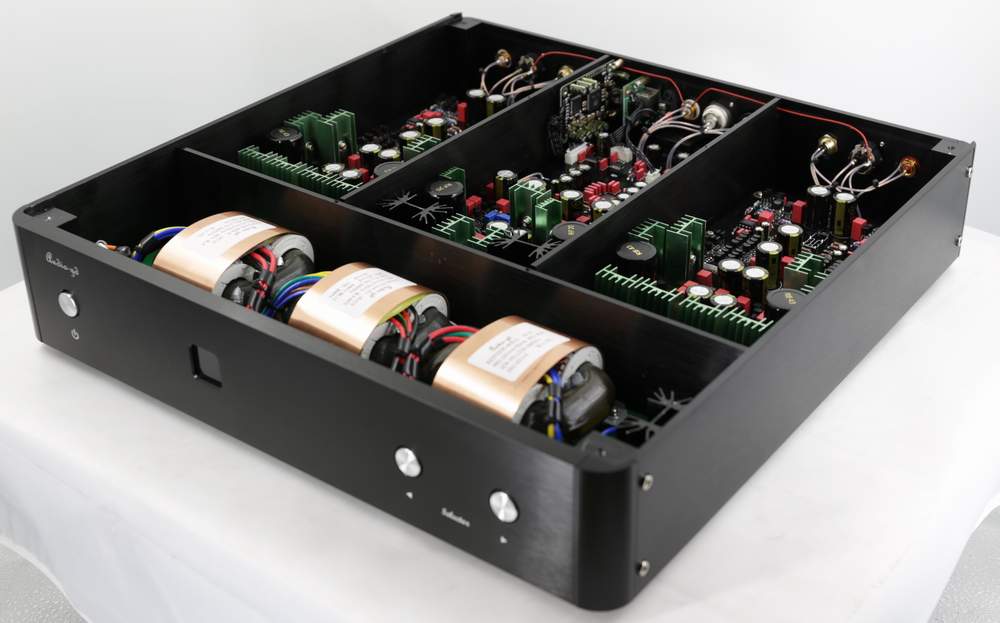

Multi-ply Class A power double-stage PSUs supplies are the key of sound :
NFB7.38 applies the excellent DA chip
ES9038 and excellent analog
output stages, but these are not the only keys of the best sound.
The power supply is most important. Even applying the best DA chip
and the best amp, if matched to a average power supply, the total
sound may still be average or sound musical but can't be neutral and
detailed. That is why it is easy to find hi-end grade gears maybe
without the best chips , but with plenteous dedicated
DC supply circuits.
The
NFB7.38
uses A total of 15 groups of high-quality class A parallel
connection PSU connect become double-stage PSU power
supply for all digital and analog circuits.
To achieve high S/N, the
control circuit is powered with separate regulator.
Diagram of the Double-stage
Class A PSUs for analogy parts Diagram of the Class A Double-stage PSUs for digital parts
Built in Amanero combo384, the best USB interface in world :
NFB7.38
had built in the Amanero combo384, it had been consider the best USB
interface in world, don't bother the USB interface performance and
sound quality anymore .
Built in Hi-End grade parts :
NFB7.38
have built in most high end grade parts, like the DALE resistors
(USA), WIMA caps (Germany) and NOVER parts (UK) .
These parts have through long
term practices and consider have least sound coloration .
Built in high end grade parts
have not warranty have the good sound , but the best
technology design with high end grade parts can have the high ended
sound quality .
¡@ |
Summarize
