Detail of the Current Conveyor
(ACSS) Technology
ACSS:
The

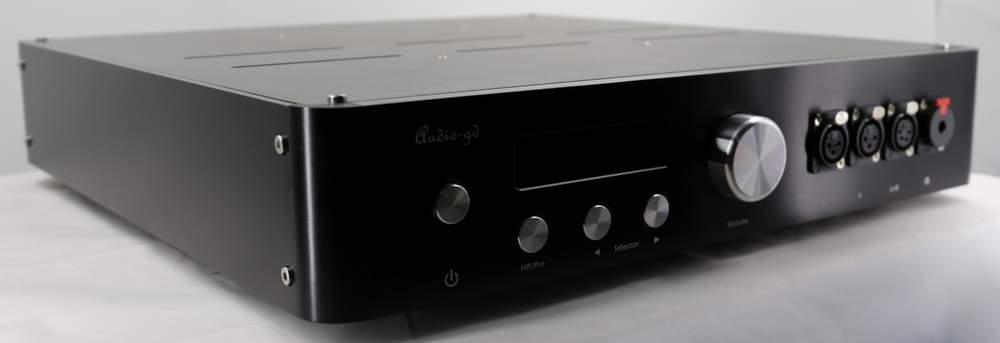

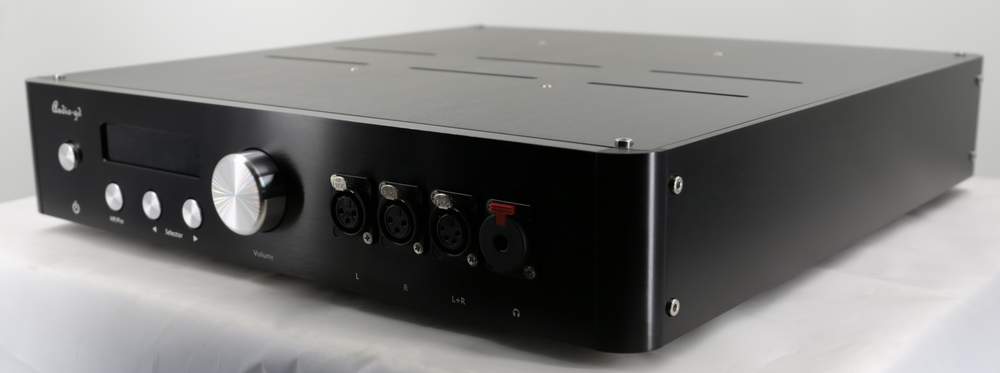

NOS 11 applied real balanced fully
discrete amp without any OPAs (the OPAs in NOS 11 only for DC
serve) ,without any couple caps ,fully non- feedback . Applies the 4 Pieces Expensive high-end grade PCM1704UK which can support up to
32Bit/384KHz input . Compare to other PCM1704UK designs , we applied Non-feedback ACSS
analog stages. The 4 pcs PCM1704UK feed to the ACSS analog
stages without any OPAs and couple caps so it can avoid sound coloration .
The ACSS is a non-feedback
technology made with fully discrete amplifiers. Most people know the
global
feedback design can offer better specs in test measurements, and
classic non-feedback can't do well in test measurements but can offer better
sound for the human's ears. Here is a conflict of the classic circuits.
But the ACSS opens a new field, it can offer a least coloration sound
which is more neutral with very low distortion and high linearity. So
it can retain the dynamics, detail and neutral sound but not sound
bright or harsh.
D/A:
Applies the 4 Pieces Expensive high-end grade
PCM1704UK . The PCM1704 UK had been consider the best neutral and
"sound like real " DA chips by a lot hififolks, but TI want to
discontinued PCM1704 and increased the price to USD48/pc
, cause the market price increase to USD70/pc .
Output buffer:
The NOS 11 output buffers had applied 4 pair power
transistors ( 150W / 15A ) working on class A state, the
output impedance is only 1 ohms , it can drive most headphones
and amps as well .
NOS 11 has all components of four channels exactly matched
before installation.
The analog part is without couple caps to avoid coloration, and
power supply by four groups class A PSUs.

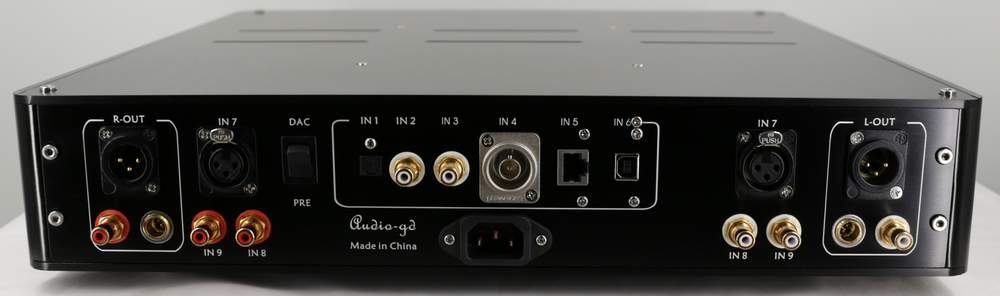

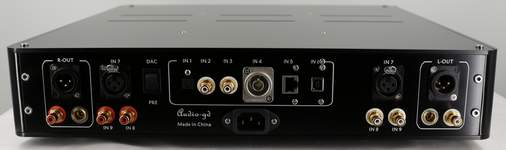

Applies ACSS technology, even though maybe you only connect to XLR
or RCA output, NOS 11 will always operate in ACSS technology,
and benefit from ACSS technology. Therefore, XLR and RCA output will
also definitely bring about improvement in sound quality. Even
through RCA output, the 4X PCM1704UK DA chips will perform fully.
DSP-1 processor:
For
the most real like sound reproduce, Mr.Kingwa had spend a long
term to design and
rectify the new NOS DSP software personally, not only based the the
software codes , but he also well know on the hardware
compatible and sensitivity on the sound quality
.
In the design had
applied -6db /oct passive analog filter ,
you can hear the wonderful sound of the NOS but you can't hear the
noise as other some NOS design .
100 people may had 99
type prefers . We had design two NOS modes in the software for users
select. Since Oct. 12th. 2016, the new Ver 2 software had offer 3
Nos modes .
One is the best speed
data process, another is applied large algorithm to process the
data.
The full
new design concept had boost the PCM1704 support up to 768KHz even
1536KHz (test in emulation mode).
A high exact TCXO for the DSP chip
running in the asynchronous data process mode, it don't want the
source master clock input , which is reduce the signal transmit
request, FIFO design and rebuilt the clock by the DSP chip, can
refuse the jitter .
Power supply:
NOS 11 applies the excellent
4 pcs PCM1704UK with DSP-1 combo
and excellent analog
output amps, but these are not the only keys of the best sound.
The power supply is most important. Even applying the best DA chip
and the best amp, if matched to a normal power supply, the total
sound may still be average or sound musical, but can't be neutral
and detailed. That is why it is easy to find hi-end grade gears
maybe without the best chips or amp stages, but with plenteous
dedicated DC supply circuits.
The
NOS 11 uses
8 groups of high-quality class A parallel
connection PSU , which can
offer very clear DC power for the DAC and amps, producing
a very black background and neutral sound characteristic. The
class A PSU is very important for digital parts. Some designs
may have very low jitter in theory, but if the power is supplied by
a dirty or low-speed power supply, it will increase the jitter and
pollute the data, and degrade the sound quality obviously.
The class A parallel connection PSU has very high input
impedance to avoid pulse through the PSU from affecting the DAC and
low output impedance with very fast speed and high linearity, so it
is a very clean power supply. In my experience, its sound is better
than battery power supply, better human sound and neutral.

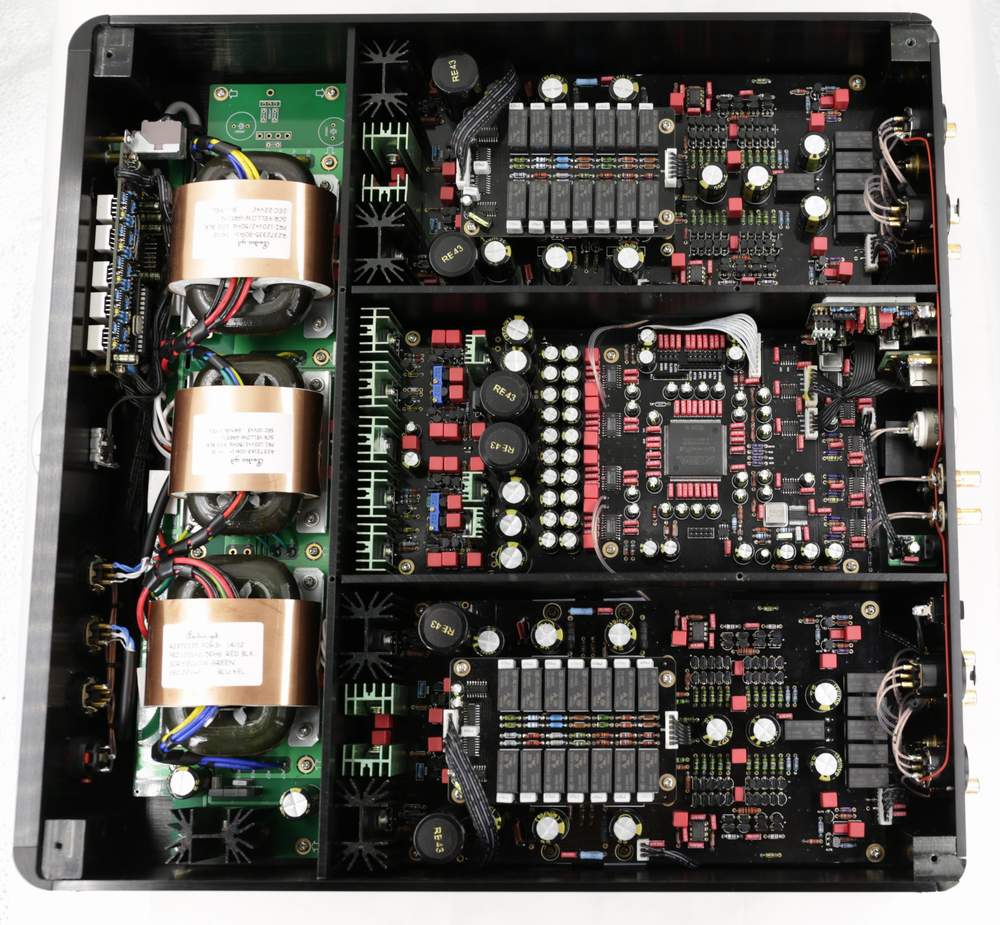

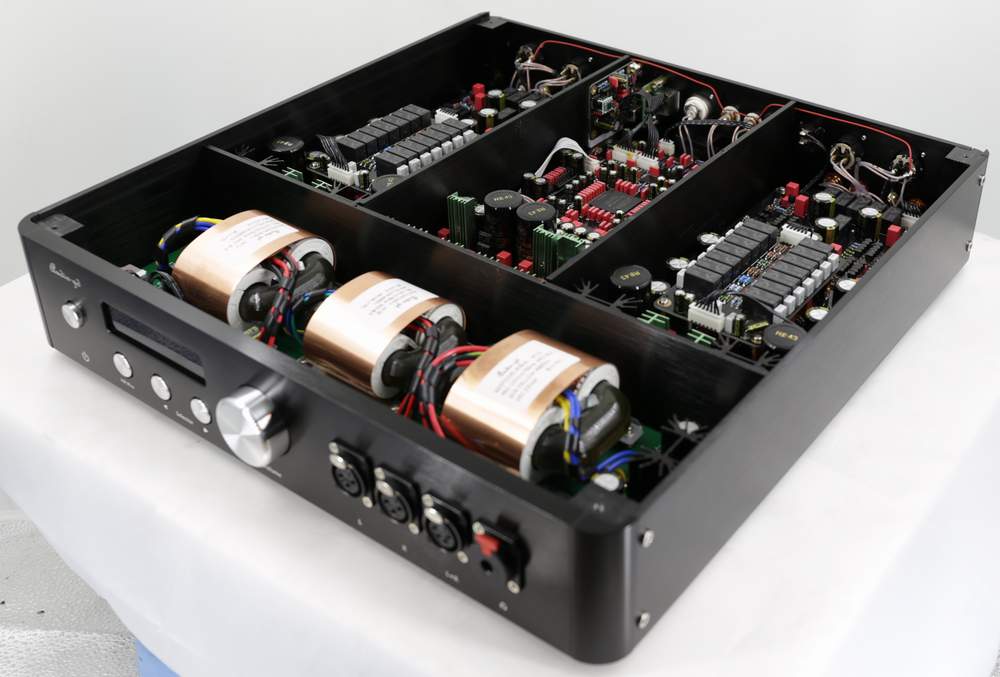

The NOS 11 uses three high performance transformers. More than
50,000uf audio grade NOVER capacitors are used to ensure ample and
smooth power feed. A total of 8 groups class A SPUs and 3 groups
linear PSUs are used to purify the power supply. To achieve high
S/N, the control circuit is powered with separate regulator.
Volume control:
The volume control is also different from conventional technology.
Conventional volume control technology is the volume control
implement in the analog amp input stage through a volume pot to
reduce the signal . The volume pots quality effect the sound quality
direct , the low quality volume pot cause lost the detail and
channels imbalance cause the soundstage distortion . Even the high
performance volume pot still cause the detail lose. Whatever quality
volume pots, must cause the S/N worst .
But in the NOS
11 , we applied the I/V conversion volume control
, the volume control just a variable passive I/V conversion place at
the ACSS amp output , where the output is the current signal, not
the voltage signal. The volume control is I/V conversion, and the
volume depends on the current (I) conversion to the voltage (V).
(Like R-2R D/A chips output passive I/V conversion) It can keep the
signal frequency band flat and not lost any detail. It can't degrade
on sound quality in every volume level . After the volume , there
are four groups diamond non-feedback buffer output stages offer the
very low output impedance .
The volume control quality is much important in the real balance
gear . It must guarantee the four channels signal control exact to
achieve the performance of the real balance gear . If the cool and
hot of the balance signal can't guarantee exact, the balance output
will has large distortion cause the sound quality and performance
even much worst than a single end gear waste the balance gear design
and the cost.

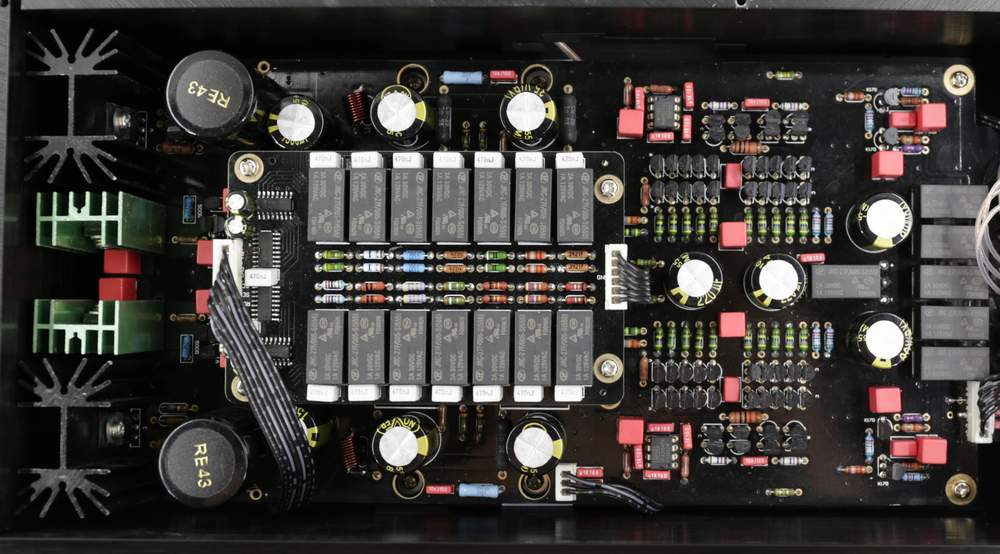

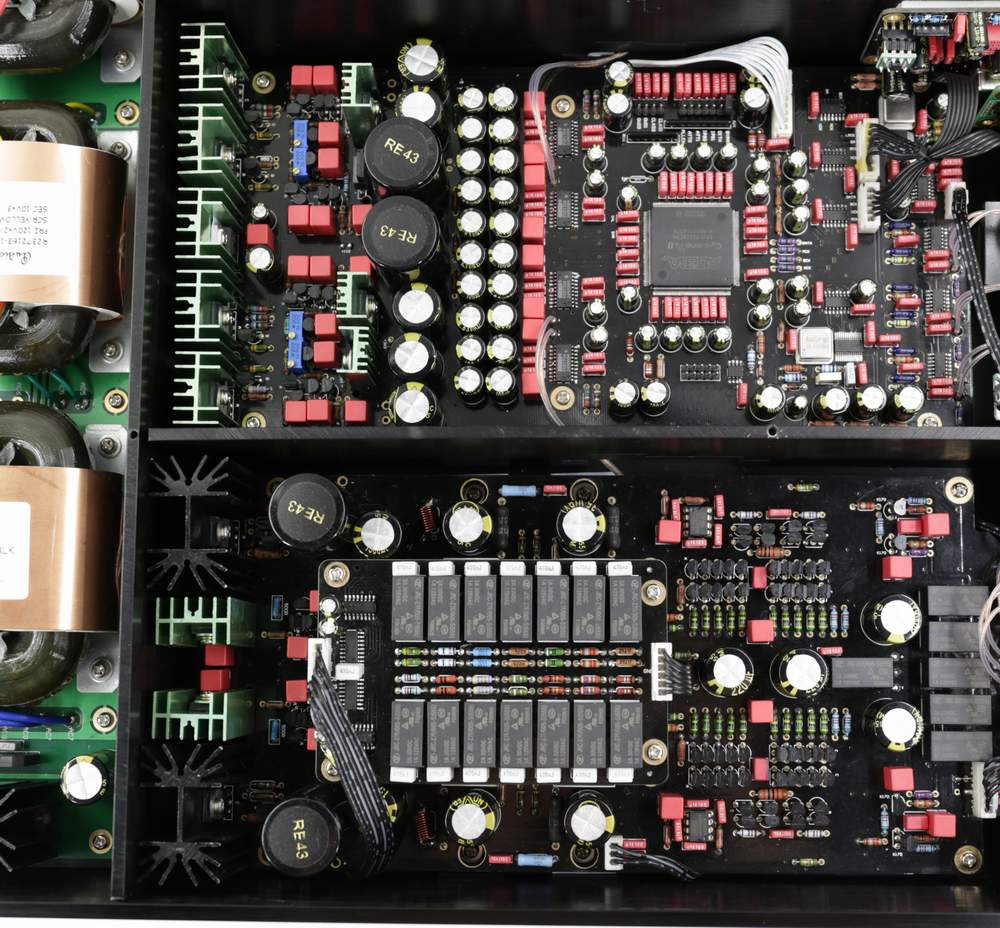

In NOS
11 is applied a four channels digital control relays based
volume control. .NOS
11 has total four channels through changing
the DALE resistors to control the volume for avoid channels
imbalanced ,achieve the best performance and sound quality of the
gear.
NOS
11 have 100 steps volume control, control range achieve 90DB
(usually the steps volume ports, potentiometer volume port, relays
base volume control all have around 70DB range ), very smooth
control range on first 50 steps , cooperate with 20DB high gain, so
can very easy adjust the volume for both high / low sensitivity
headphone and speakers. While change the volume, the different
relays break or close, it may had slightly switch sound on output
and disappear while stop change the volume.
Supper Exponential volume characteristic
The Volume steps comparison to normal volume knob
Shield:

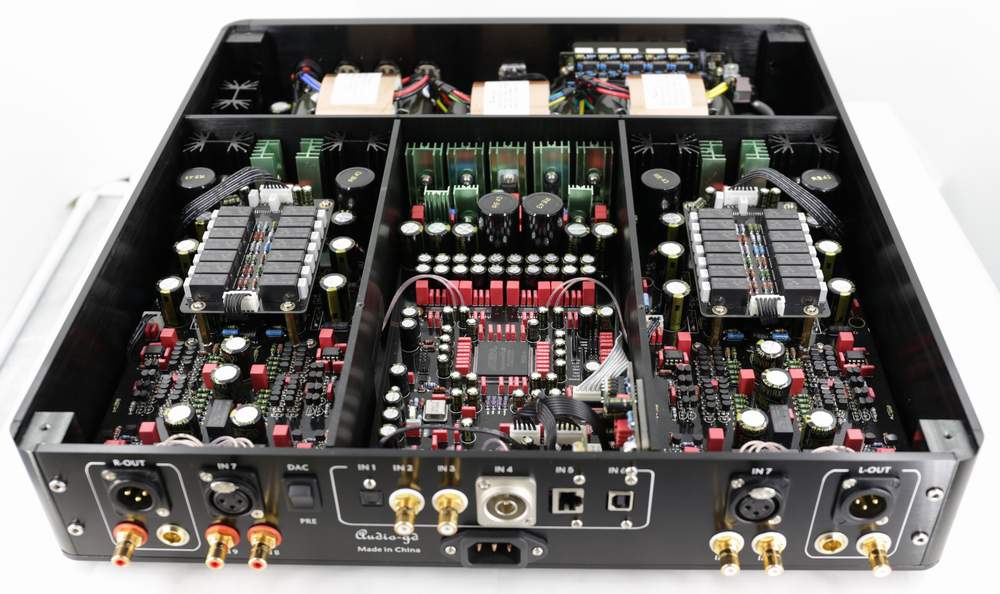

NOS
11 has complete separation of left, right
amplifier channels, power supply, and transformer.
NOS
11 uses heavyweight all-aluminum alloy chassis to prevent the
eddy current of transformers from interfering on circuit board.
NOS 11 applies optical couple isolation for the MCU and the
control implementations to prevent the MCU affecting the audio parts.
|
